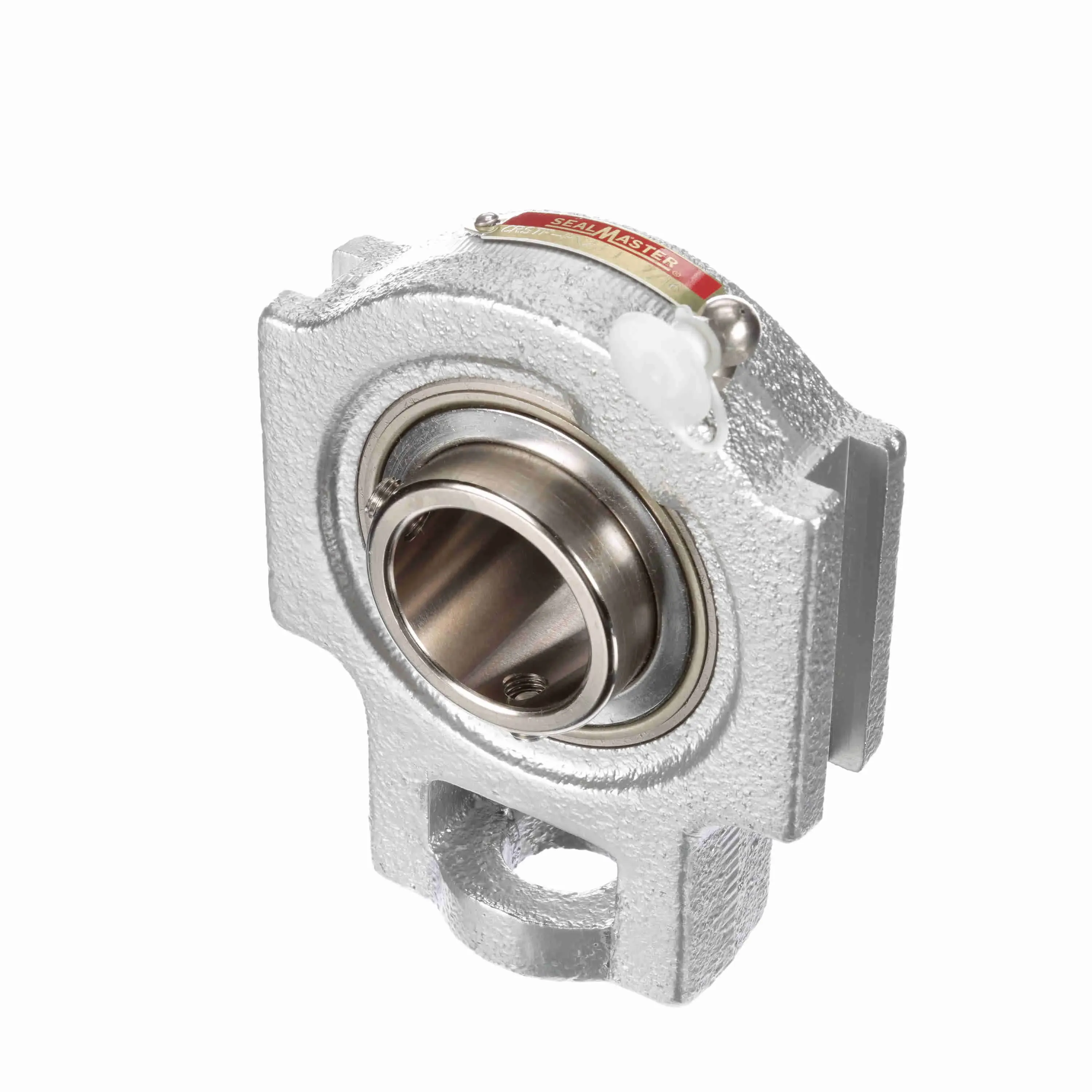

SEALMASTER CRSTF-PN20R 711850 Take-Up Ball Bearing Unit, Side Mount, 1.2500 Inch Bore
Item: BD6NFP
Model: CRSTF-PN20R
24 In Stock
Ships within 2 days via
£1950.49/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Fixed Vs. Expansion | Fixed |
|---|---|
| Grease Type | Goldplex-FG |
| Housing Base | Solid |
| Housing Material | Fluoropolymer Coated Cast Iron |
| Housing Type | Take Up |
| Htc | 8483.20.4040 |
| Locking Device | Setscrew |
| Max. Operating Temperature | 250°F |
| Product Type | Sealmaster-Pn Gold |
|---|---|
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | High Performance Seal |
| Shaft Size | 1 1/4" |
| no. links/ ft. | 0 |
Product Details
Standard
Shipping Information
| height | 5.23 |
|---|---|
| length | 11.13 |
| width | 17.3 |
| country of origin | US |
|---|---|
| weight | 1.530000 |
Related Products
| Style | Model | Bore Dia. | Overall Height | Overall Length | Overall Width | Seal Type | Max. Speed | Dynamic Load Capacity | Slot Spacing | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CRSTF-PN39 | 2 7/16" | 5 3/4" | 7.63" | 2 14/25" | Multi-Lip Contact Seal | 1250 RPM | 11789 lbs. | 5 1/8" | 713.59 | |
| A | CRSTF-PN31 | 1 15/16" | 4.63" | 5 22/25" | 2.19" | Multi-Lip Contact Seal | 1500 RPM | 7889 lbs. | 4" | 606.15 | |
| A | CRSTF-PN24 | 1 1/2" | 4 1/2" | 5.69" | 2.13" | Multi-Lip Contact Seal | 1750 RPM | 7340 lbs. | 4" | 501.98 | |
| B | CRSTF-PN19 | 1 3/16" | 4" | 4 11/25" | 1 3/4" | Multi-Lip Contact Seal | 2300 RPM | 4381 lbs. | 3 1/2" | 389.05 | |
| C | CRSTF-PN32 | 2" | 5 3/4" | 6 3/4" | 2 1/4" | Multi-Lip Contact Seal | 1350 RPM | 9752 lbs. | 5 1/8" | 593.49 | |
| D | CRSTF-PN22 RMW | - | - | - | - | High Performance Seal | - | - | - | 483.84 | |
| E | CRSTF-PN27 | - | - | - | - | High Performance Seal | - | - | - | 2,425.59 |
