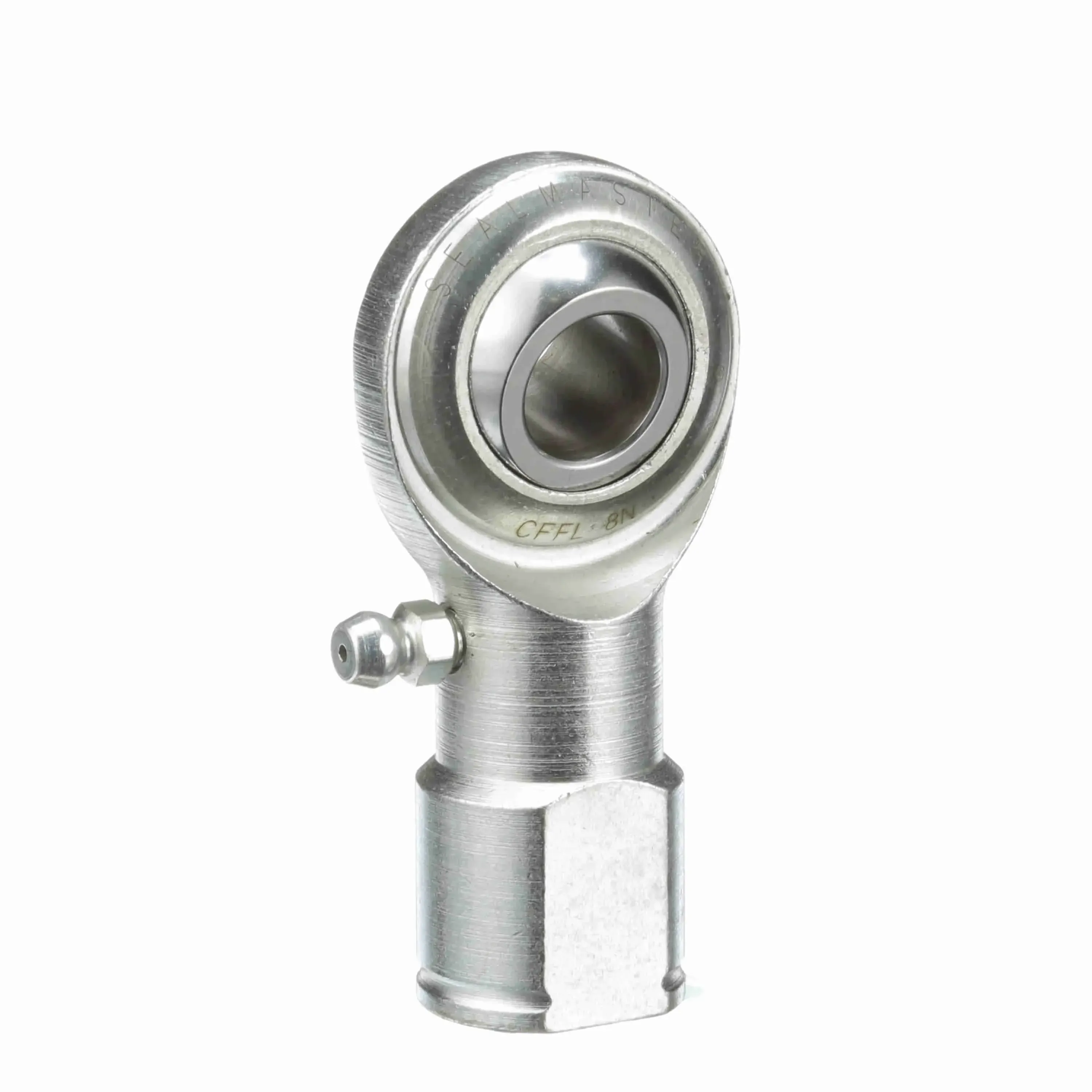

SEALMASTER CFFL 8N 1590801000 Rod End Bearing, 1/2 Inch Bore, 1/2 Inch Housing Width, Female, 1/2-20 UNF, Left Hand
Item: BD8DAL
Model: CFFL 8N
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£34.66/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Across Wrench Flats | 3/4" |
| Axial Load | 900 |
| Ball Diameter | 0.937" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.698" |
| Ball Material | Alloy Steel |
| Ball Width | 5/8" |
| Base Diameter | 7/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 1/2" |
| Class | Commercial |
| Configuration | Female |
| Construction | Two Piece Rod End With Zerk Fitting |
| Head Diameter | 1.312" |
| Housing Style | Female Rod End |
| Housing Width | 1/2" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2.13" |
| Lubrication | Zerk Fitting |
|---|---|
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max Static Radial Load | 9000 |
| Max. Ambient Temp. | 350°F |
| Misalignment Angle | -6° to +6° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Cff |
| Race Material | Teflon |
| Series | Commercial Series |
| Thread Direction | Left Hand |
| Thread Length | 1.031" |
| Thread Size | 1/2"-20 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | Yes |
Product Details
Rod End Bearing
Shipping Information
| height | 3.33 |
|---|---|
| length | 7.06 |
| width | 1.9 |
| country of origin | MX |
|---|---|
| weight | 0.130500 |
