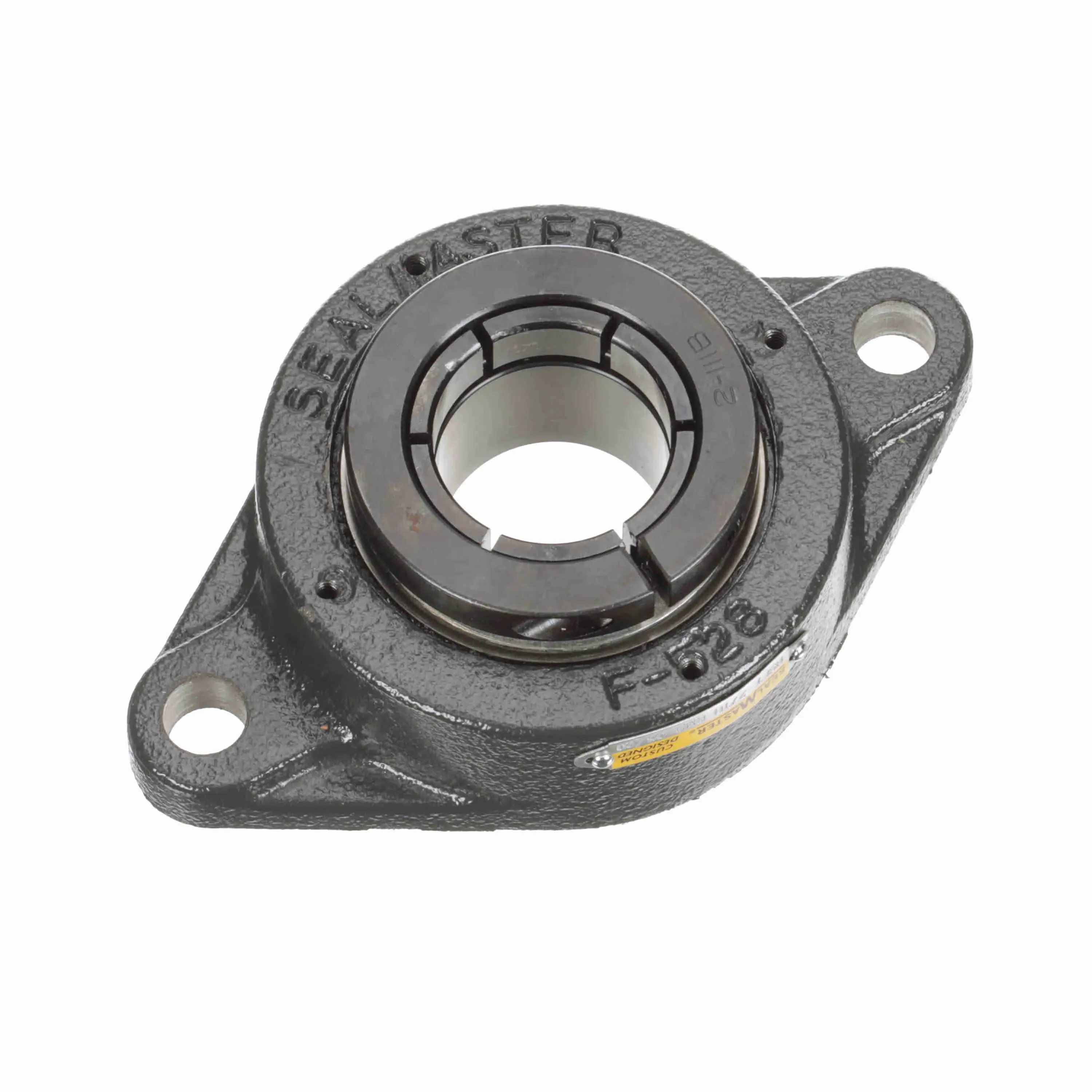

SEALMASTER BSFT-27TH RMD 704797 Flange Block Bearing, 2 Bolt Flange Block, 1.68 Inch Bore, 5.8 Inch Bolt Dia
Item: BD7BYT
Model: BSFT-27TH RMD
In Stock
Get it by Thursday, Apr 16
£349.07/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | No |
|---|---|
| Backside Shield/seal | Backside Shield Included Loose In Box |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 5.844" |
| Bore Dia. | 1 11/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.297" |
| Insert | 2-111TH RM |
| Length Through Bore | 1.938" |
| Locking Collar Outside Diameter | 2.94" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1600 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 2.107" |
| Overall Length | 7.06" |
| Overall Width | 4.38" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
Product Details
Flange Block Bearing
Shipping Information
| height | 5.87 |
|---|---|
| length | 11.76 |
| width | 19.05 |
| country of origin | US |
|---|---|
| weight | 2.295000 |
