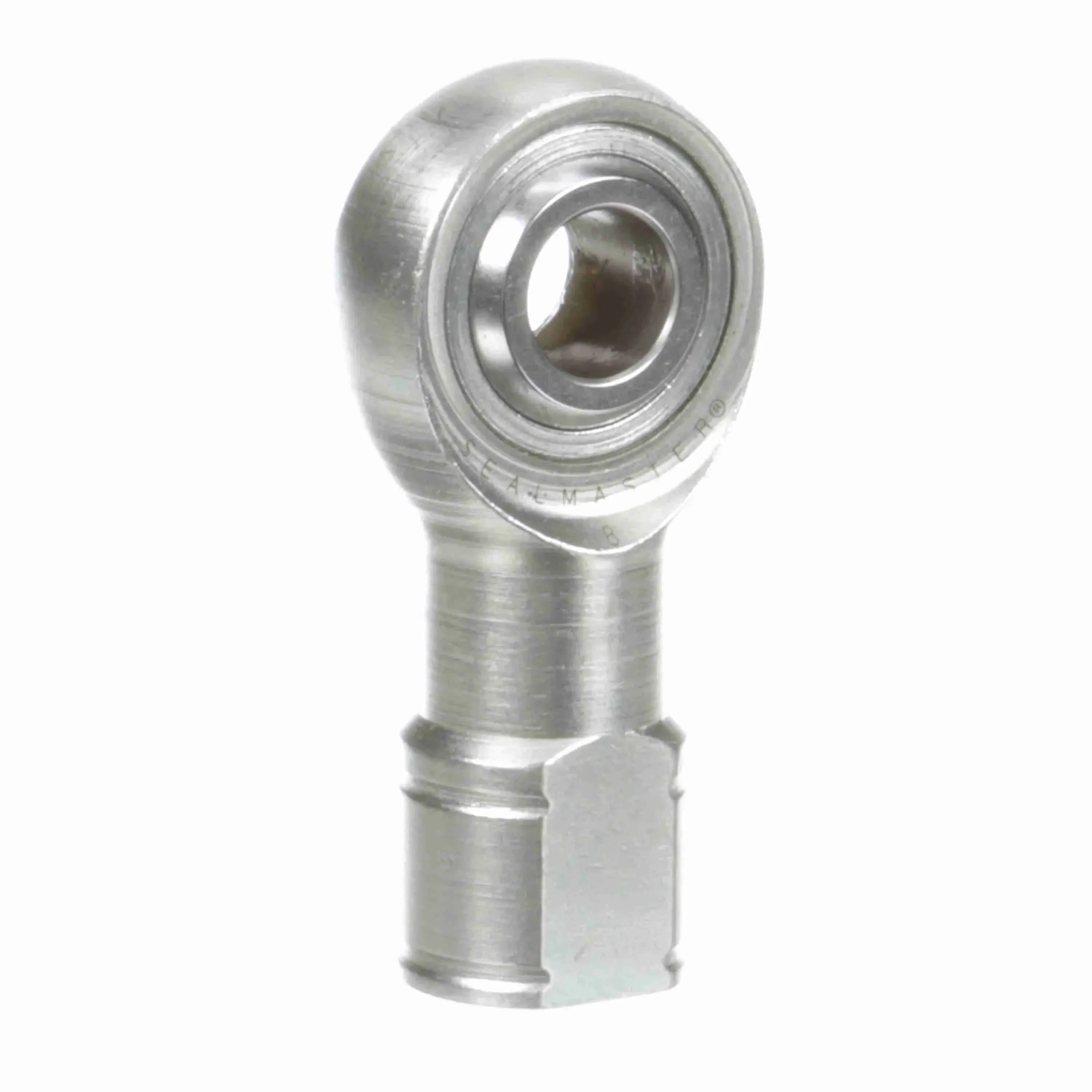

SEALMASTER ARL 8 1550800000 Rod End Bearing, 1/2 Inch Bore, 1/2 Inch Housing Width, Female, Left Hand
Item: BE7CUG
Model: ARL 8
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | No |
|---|---|
| Across Wrench Flats | 3/4" |
| Axial Load | 1350 |
| Ball Diameter | 0.937" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.698" |
| Ball Material | Alloy Steel |
| Ball Width | 5/8" |
| Base Diameter | 7/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 1/2" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End |
| Head Diameter | 1.312" |
| Housing Style | Female Rod End |
| Housing Width | 1/2" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2.13" |
| Lubrication | No Zerk Fitting |
| Lubrication Method | No Fitting |
|---|---|
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 13500 |
| Misalignment Angle | -6° to +6° |
| Outer Material | Alloy Steel |
| Outer Material Grade | 4130 |
| Outer Material Property | Heat Treated Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | AR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | PRECISION EXTRA CAPACITY Series |
| Thread Direction | Left Hand |
| Thread Length | 1.156" |
| Thread Size | 1/2"-20 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | No |
Product Details
Rod End Bearing
Shipping Information
| height | 9.27 |
|---|---|
| length | 5.84 |
| width | 2.16 |
| country of origin | MX |
|---|---|
| weight | 0.139500 |
Related Products
| Style | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Grade | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | ARL 12 | 3/4" | 1.312" | - | Alloy Steel | Carbon Steel | Female Rod End | - | 135.42 | |
| B | AR 10N | 5/8" | 1 1/8" | - | Alloy Steel | Carbon Steel | Female Rod End | - | 112.82 | |
| C | AR 5N | 5/16" | 5/8" | - | Alloy Steel | Carbon Steel | Female Rod End | - | 46.54 | |
| D | ARL 12N | 3/4" | 1.312" | - | Alloy Steel | Carbon Steel | Female Rod End | - | 139.06 | |
| E | ARL 4 | - | - | 1/4" | Alloy Steel | Carbon Steel | - | Grade4130 | 253.47 | |
| F | AR 3 | - | 0.437" | 3/16" | Alloy Steel | Carbon Steel | Female Rod End | - | 45.54 | |
| G | AR 10 | 5/8" | 1 1/8" | - | Alloy Steel | Carbon Steel | Female Rod End | - | 108.36 |
