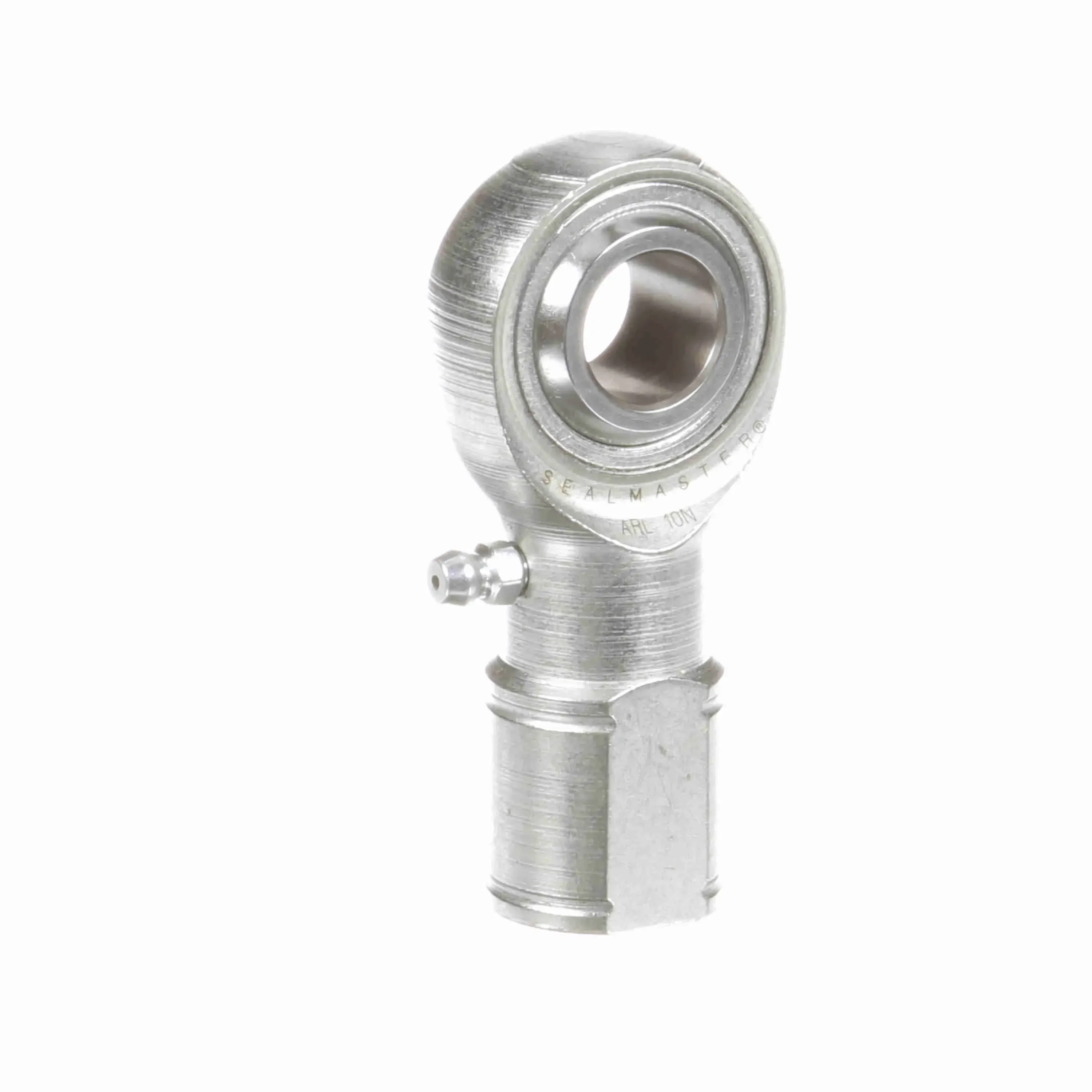

SEALMASTER ARL 10N 1551001000 Female Rod End Bearing
Item: BE2PQA
Model: ARL 10N
In Stock
Get it by Wednesday, Apr 15
£135.38/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Across Wrench Flats | 7/8" |
|---|---|
| Axial Load | 1730 |
| Ball Diameter | 1 1/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.839" |
| Ball Material | Alloy Steel |
| Ball Width | 3/4" |
| Base Diameter | 1" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 5/8" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Diameter | 1 1/2" |
| Housing Style | Female Rod End |
| Housing Width | 0.562" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2 1/2" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
|---|---|
| Lubrication Type | Grease |
| Max Static Radial Load | 17300 |
| Max. Ambient Temp. | 350°F |
| Misalignment Angle | -8° to +8° |
| Outer Material | Alloy Steel |
| Outer Material Grade | 4130 |
| Outer Material Property | Heat Treated Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | AR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | PRECISION EXTRA CAPACITY Series |
| Thread Direction | Left Hand |
| Thread Length | 1.469" |
| Thread Size | 5/8"-18 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | Yes |
Product Details
Yes
Shipping Information
| height | 2.24 |
|---|---|
| length | 7.32 |
| width | 8.26 |
| country of origin | MX |
|---|---|
| weight | 0.202500 |
