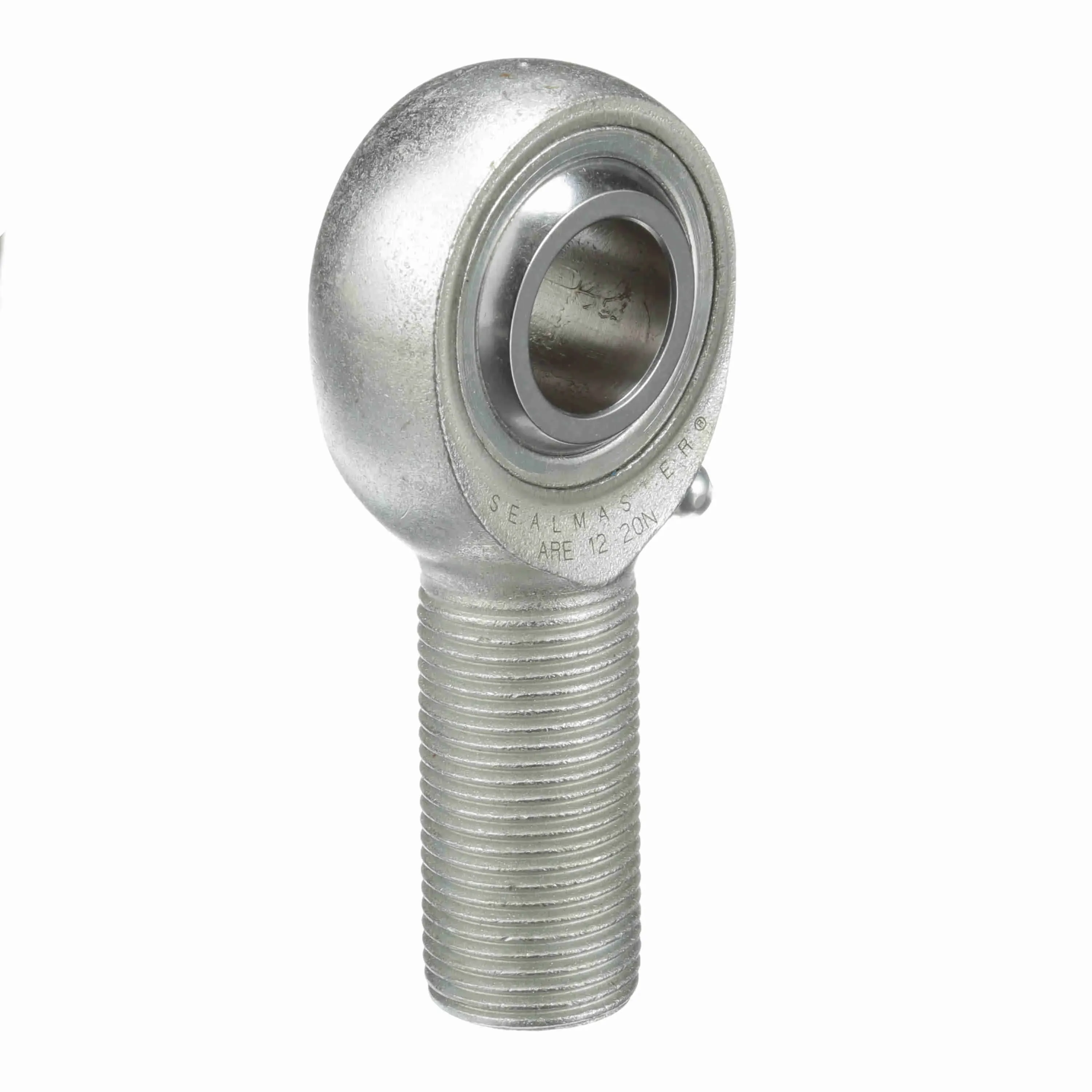

SEALMASTER ARE 12 20N 1441203000 Rod End Bearing, 3/4 Inch Bore, 0.687 Inch Housing Width, Male, Right Hand
Item: BE3DEV
Model: ARE 12 20N
In Stock
Get it by Thursday, Apr 16
£149.64/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Axial Load | 2320 |
| Ball Diameter | 1.312" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.978" |
| Ball Material | Alloy Steel |
| Ball Width | 7/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/4" |
| Class | Precision |
| Configuration | Male |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Diameter | 1 3/4" |
| Housing Style | Male Rod End |
| Housing Width | 0.687" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2 22/25" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
|---|---|
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 23200 |
| Misalignment Angle | -7° to +7° |
| Outer Material | Alloy Steel |
| Outer Material Grade | 4130 |
| Outer Material Property | Heat Treated Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Are-20 |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | PRECISION EXTRA CAPACITY Series |
| Thread Direction | RH |
| Thread Length | 1.719" |
| Thread Size | 7/8"-14 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | Yes |
Product Details
Shipping Information
| Height | 13.08 |
|---|---|
| Length | 7.37 |
| Width | 3.18 |
| Country Of Origin | MX |
|---|---|
| Weight | 0.328500 |
Related Products
| Style | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Grade | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | AREL 4 20 | - | - | 1/4" | Alloy Steel | Carbon Steel | - | Grade4130 | 209.48 | |
| B | ARE 5 20N | 5/16" | 5/8" | - | Alloy Steel | Carbon Steel | Male Rod End | - | 44.85 | |
| C | ARE 10 | 5/8" | 1 1/8" | - | Alloy Steel | Carbon Steel | Male Rod End | - | 96.76 | |
| D | ARE 10 20 | 5/8" | 1 1/8" | - | Alloy Steel | Carbon Steel | Male Rod End | - | 96.03 | |
| E | AREL 7 20N | 7/16" | - | - | Alloy Steel | Carbon Steel | - | Grade4130 | 62.50 | |
| F | ARE 3 | - | 0.437" | 3/16" | Alloy Steel | Carbon Steel | Male Rod End | - | 39.08 | |
| G | AREL 12 | 3/4" | 1.312" | - | Alloy Steel | Carbon Steel | Male Rod End | - | 124.44 |
