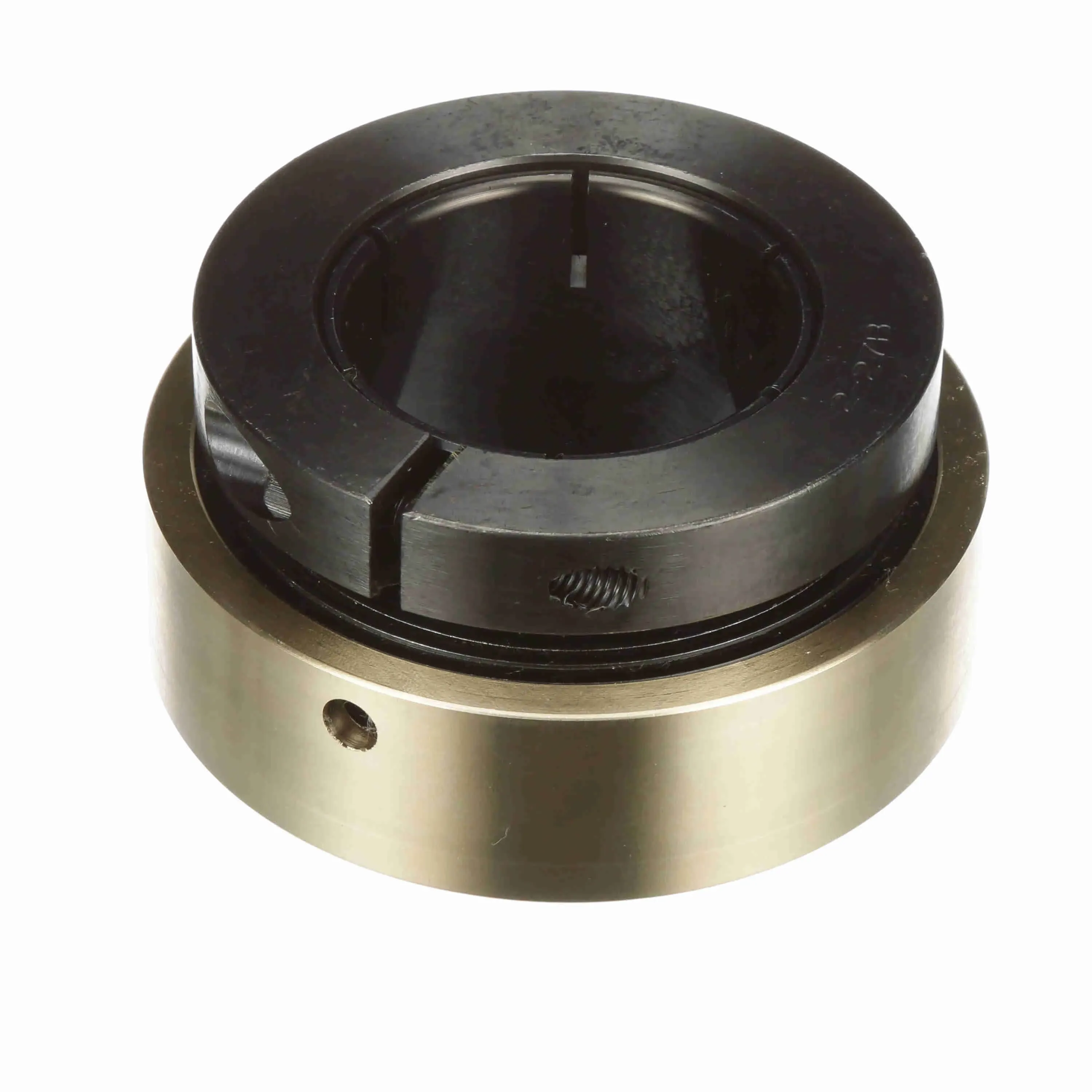

SEALMASTER AR-2-27T 705603 Insert Bearing, 2.43 Inch Bore, 2-5/8 Inch Length Thru Bore, 1-21/64 Inch Outer Race Width

Item: BD8LYY
Model: AR-2-27T
In Stock

Get it by Wednesday, Apr 15

£614.69/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Bearing Insert Finish Black Oxide
Bore Dia. 2 7/16"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Centerline To Front Face 1 5/8"
Collar Outer Diameter 4 1/8"
Duty/series Standard Series
Dynamic Radial Load Capacity 11789 lbs.
End Cap No
Fixed Vs. Expansion No
Housing Type Insert Only
Htc 8482.10.5056
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 2 5/8"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Diameter 4 1/8"
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Standard
Locking Type Concentric
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 4100 RPM
Measure Units Inch
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Outer Race Od 4.719"
Outer Race Profile Cylindrical
Outer Race Width 1.328"
Outer Ring Land Profile Standard
Overall Width 2 5/8"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radial Static Load Capacity 8150 lbs.
Radius 2/25"
Retainer Type Land Riding Retainer
Rolling Element Ball Bearing
Series AR-T Series
Torx Cap Screw Length 1"
Torx Cap Screw Size 5/16"-18
Type Of Seal Felt Labyrinth Seal

Product Details

Insert Bearing

Shipping Information

height 7.95
length 13.97
width 14.12
country of origin MX
weight 2.632500
