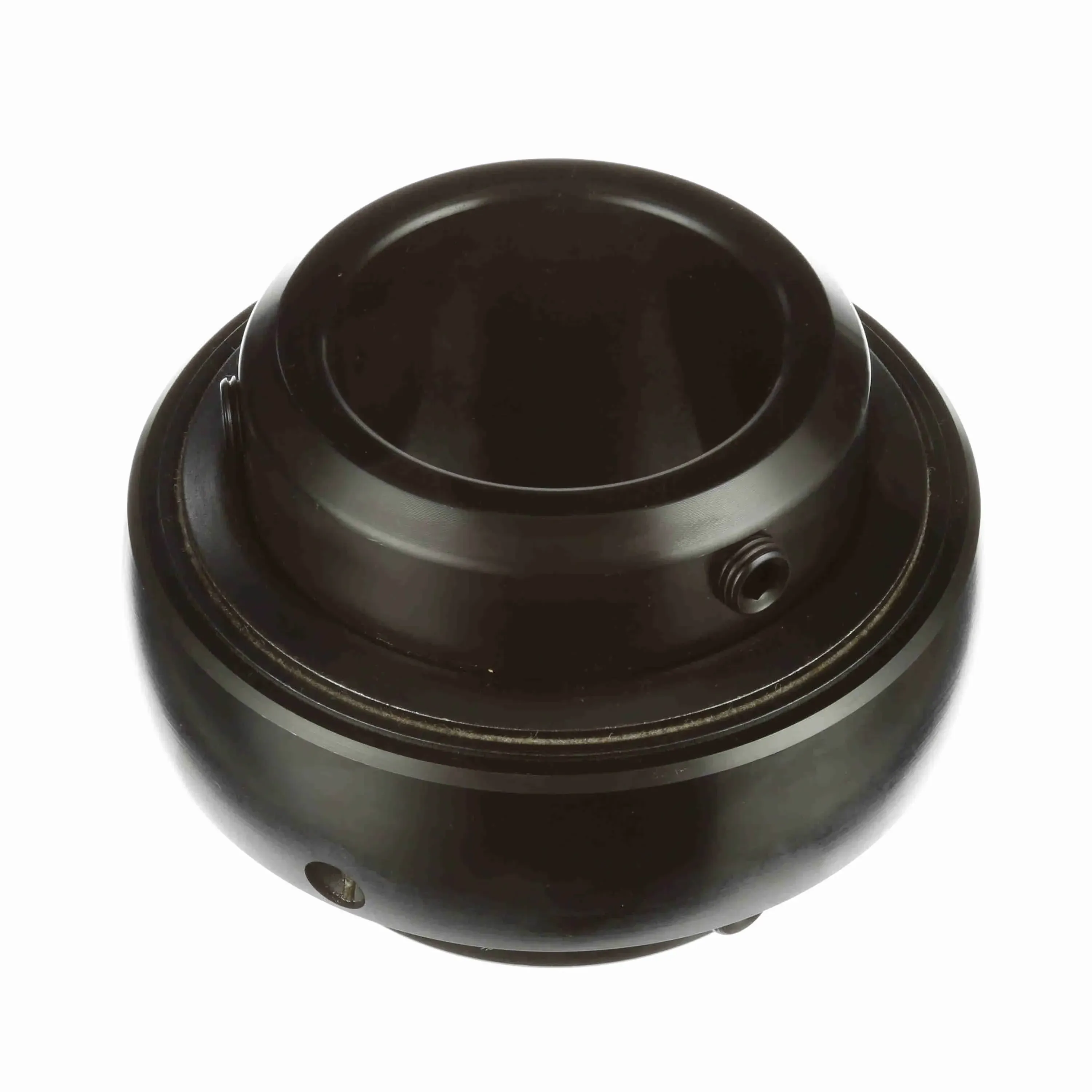

SEALMASTER 3-27D 702059 Mounted Insert Only Ball Bearing

Item: BD7VAC
Model: 3-27D
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£783.00/unit (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Angle Of Misalignment +/-2°
Basic Dynamic Load Rating 13, 971
Bearing Design Non Expansion
Bearing Insert Coating Black Oxide
Bearing Insert Finish Black Oxide
Bearing Material Black Oxided Bearing Steel
Bearing Type Insert
Bore Dia. 2 7/16"
Bore Shape Straight
Bore Type Round Bore
Cage Material Brass
Centerline To Front Face 1.75"
Centerline To Front Face 1 3/4"
Duty/series Medium
Dynamic Load Capacity 13971 lbs.
Dynamic Radial Load Capacity 13971 lbs.
Enclosure Double Sealed
End Cap No
Expansion No
Expansion Type Non-Expansion Bearing (Fixed)
Family Series Sealmaster Bearings
Fillet Radius 0.08"
Finish Black Oxide
Fixed Vs. Expansion No
Grade Grade 52100
Grease Type Lithium Complex, EP, NLGI#2
Height 3 1/2"
Housing Type Insert Only
Htc 8482.10.5056
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 3.5"
Inner Race Length 3 1/2"
Inner Race Profile Wide Inner Ring
Inner Ring Od 3.438"
inner ring outside dia. 3.438"
Insert Material Steel
Insert Material 52100 Bearing Steel, Black Oxided
Insert Material Finish Black Oxide
Insert Material Grade 52100
inside dia. 2 7/16"
Internal Clearance Standard
Length 5 1/2"
Locking Device Double Setscrew Locking Collar
Locking Device Double Set Screw
Locking Type Double Set Screw
Locking Type Double Setscrew
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temp. 220°F
Max. Speed 3600 RPM
Misalignment Angle -2° to +2°
Misalignment Type Static Only
no. links/ ft. 0
No. Links/ft. 0
Operating Temp. Range -20°F to +220°F
outer race outside dia. 4.921"
Outer Race Outside Dia. 4.9213"
Outer Race Profile Spherical
Outer Race Width 1 3/8"
Outer Race Width 1.375"
Outer Ring Land Profile Standard
Outside Dia. 125 mm
Overall Width 3 1/2"
Platform Gold Line Ball Bearing
Precision Rating ABEC 1
Radius 0.08
Radius 2/25"
Retainer Type Land Riding
Rolling Element Ball Bearing
Seal Flinger Yes
Seal Type Felt Labyrinth
Seal Type Felt
Set Screw Thread 7/16-20
Set Screw Thread Size 7/16"-20
Shaft Size 2 7/16"
Static Load Capacity 10063 lbf.
static radial load capacity 10063 lbs.
Type Of Seal Felt Labyrinth Seal
Width 5.38"

Product Details

Yes

Shipping Information

height 13.67
length 13.97
width 8.89
country of origin US
weight 3.145500
