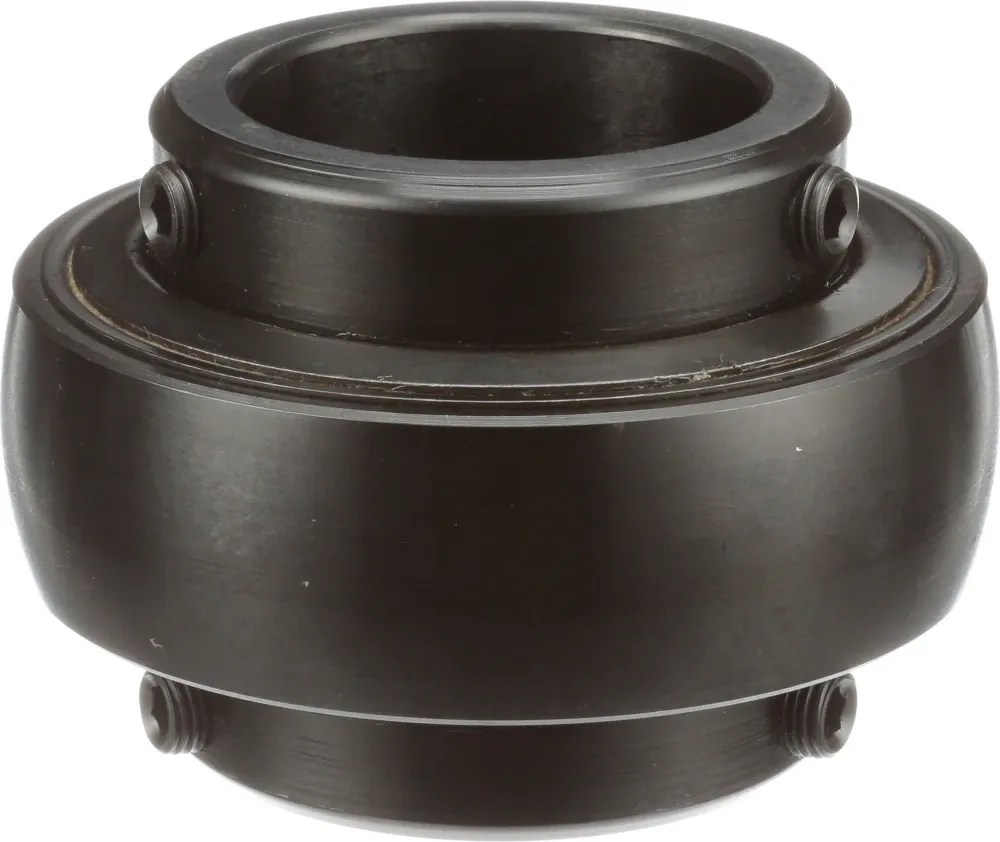

SEALMASTER 2-115D Ball Insert Bearing, Cylindrical Bore, 1-15/16 Inch Inside Dia.
Item: BE2QRC
Model: 2-115D
In Stock
Get it by Thursday, Apr 16
£241.78/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Type | Round |
|---|---|
| Cage Material | Brass |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings |
| Fillet Radius | 0.062" |
| Housing Type | Insert Only |
| Inner Ring Width | 2.5" |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Double Set Screws |
| Misalignment Angle | -2° to +2° |
|---|---|
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Outer Ring Width | 1 1/8" |
| Outside Dia. | 3.543" |
| Overall Width | 2 3/8" |
| Relubricatable | Yes |
| Retainer Type | Land Riding Retainer |
| Seal Type | Standard Felt Seal |
| Set Screw Thread Size | 3/8"-24 |
| Static Radial Load Capacity | 5216 lbs. |
Product Details
Insert
Shipping Information
| width | 6.03 |
|---|
| weight | 1.215000 |
|---|
