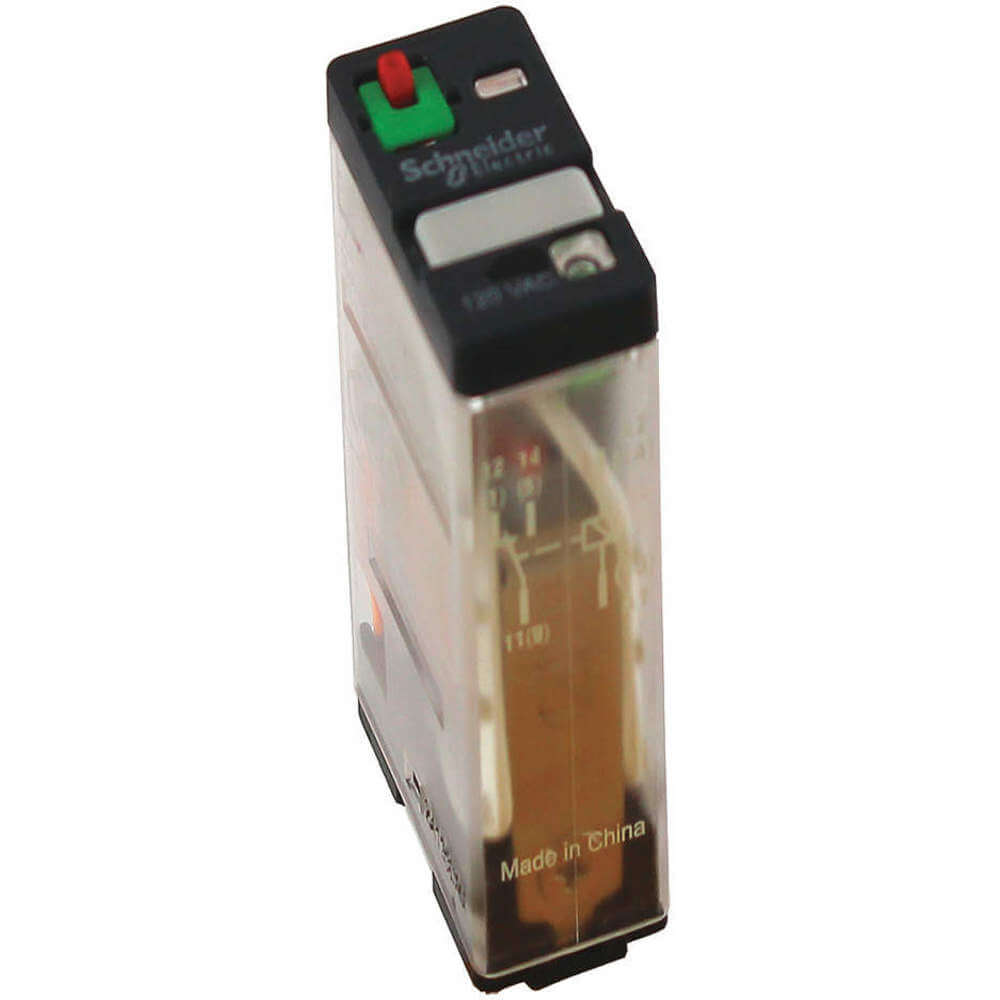

SCHNEIDER ELECTRIC 781XAXRM4L-120A Plug-In Relay 5 Pins Square 120VAC

Item: AH8ZFA
Model: 781XAXRM4L-120A
18 In Stock

Ships within 2 days via

£27.35
5.00% off
£25.98/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Contact Rating 15A @ 277V
Base Type Square
Coil Voltage 120V AC
Contact Form SPDT
Contact Material Silver Alloy
Contact Rating (ac) 7.55A @ 250V (Nc), 10A @ 151/277V, 15A @ 120 to 277/120/150/250V (No)
Contact Rating (dc) 7.55A @ 28V (Nc), 15A @ 28V (No)
Current Rating 15A
Dc Contact Rating 15A @ 28V
Dielectric Strength 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles
Electrical Connection Type Tab
Electrical Operating Durability 100000
Horsepower @ 120v Ac 1/2 hp
Horsepower @ 240v Ac Not Rated
Mechanical Operating Durability 10000000
Motor Rated Yes
Number Of Pins 5
Number Of Pins/terminals 5
Number Of Poles 1
Product Datasheet schneider-electric-781xaxrm4l-120a.pdf
Push-to-test Button Lockable Push Test Button
Relay Mounting Style Socket
Series 781R Series
Socket Code L
Status Indicator LED, Mechanical Flag
Type General Purpose

Product Details

Shipping Information

Height 2.72
Length 3.99
Width 1.35
Country Of Origin CN
Weight 0.024800
