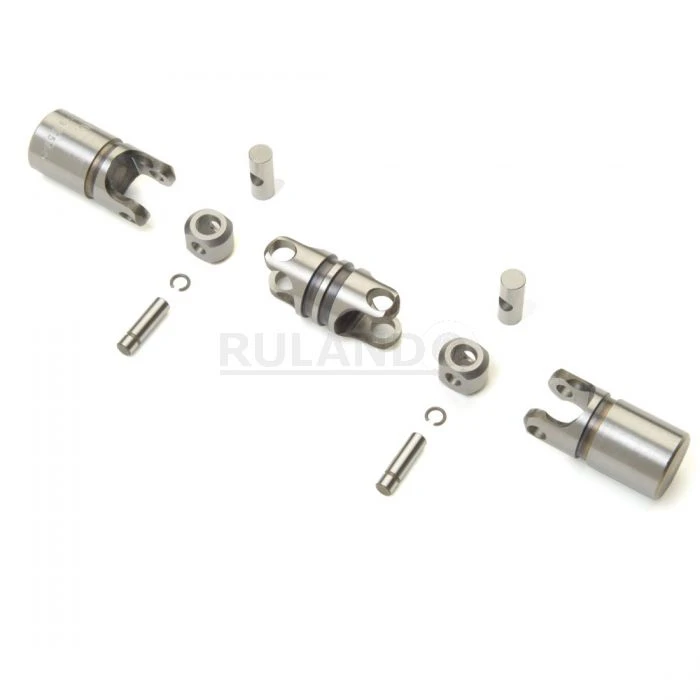

| Item | Universal Joint |
| B1 Max Shaft Penetration | 0.740 in (18.8 mm) |
| B2 Max Shaft Penetration | 0.740 in (18.8 mm) |
| Bore (b1) | No Bore |
| Center Yoke Length (lc) | 0.813 in (20.7 mm) |
| Hub Depth (lh) | 0.740 in (18.8 mm) |
| Joint Outer Diameter (od) | 0.495 in (12.6 mm) |
| Length (l) | 2.813 in (71.5 mm) |
| Matching Boot Cover | UBOOT8/13-NI-KIT |
| Material Specification | Alloy Steel |
| Max Blind Bore (inch) | 0.3750 in |
| Max Blind Bore (metric) | 9 mm |
| Max Hex Or Square Bore (inch) | 0.2813 in |
| Max Hex Or Square Bore (metric) | 7 mm |
| Max Operating Angle | 90° |
| Max Round Bore (inch) | 0.2813 in |
| Max Round Bore (metric) | 7 mm |
| Peak Torque | 315 in-lb (35.6 Nm) |
| Rated Torque | 63 in-lb (7.1 Nm) |
| Recommended Lubricant | LUBRIPLATE No. 1200-2 |
| Small Bore (b2) | No Bore |
| Yoke Length (ly) | 1.000 in (25.4 mm) |
| Ship weight (kg) | 0.06 |
| Ship length (cm) | 7.15 |
| Country of Origin | US |
