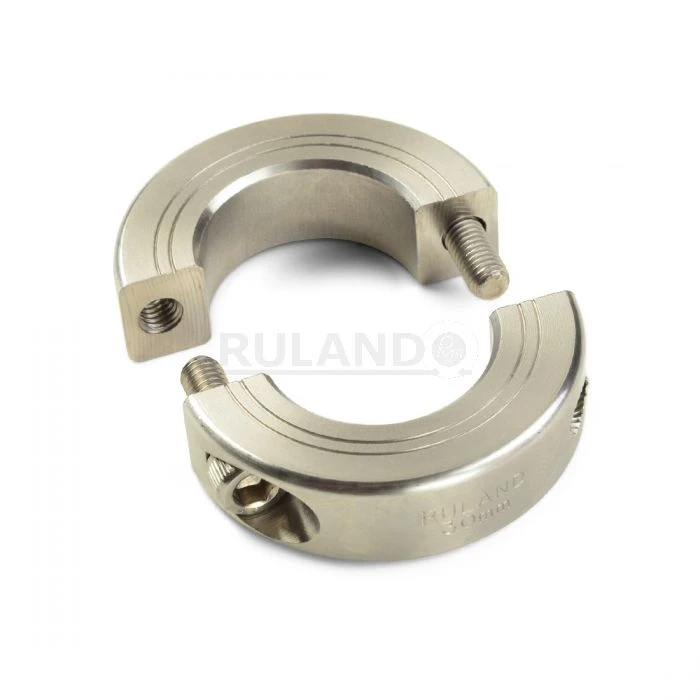

| Item | Shaft Collar |
| Bore (b1) | 1.6250 in |
| Bore Tolerance | +0.0020 in / +0.0005 in |
| Clearance Diameter (c) Max | 2.935 in |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | 5/16-24 |
| Hex Wrench Size | 1/4 in |
| Material Specification | Type 316L Austenitic, Non-Magnetic Bar |
| Number Of Screws | 2 ea |
| Outer Diameter (od) | 2 5/8 in |
| Recommended Gap | 0.125 in |
| Recommended Shaft Tolerance | +0.0000 in / -0.0005 in |
| Screw Finish | Bright |
| Screw Location (r) | 1.063 in |
| Screw Material | 316 Stainless Steel |
| Seating Torque | 190 lb-in |
| Temperature | -40°F to 350°F (-40°C to 176°C) |
| Width (w) | 0.688 in |
| Width Tolerance | +0.003 in / -0.010 in |
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.67 |
| Ship length (cm) | 6.67 |
| Ship width (cm) | 1.75 |
| Country of Origin | US |
