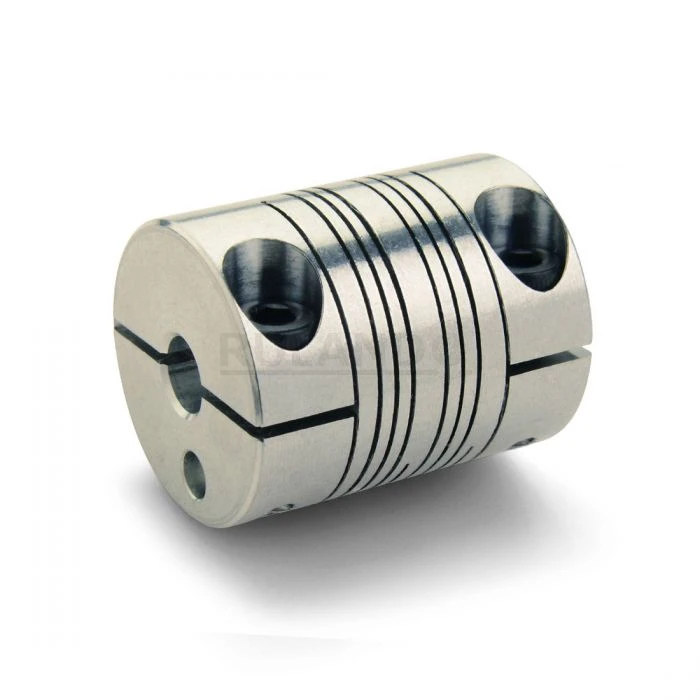

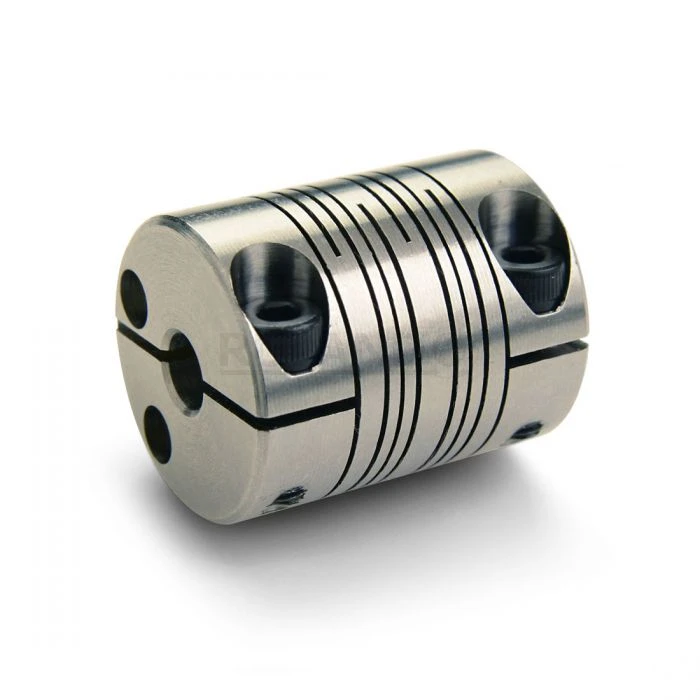

RULAND MANUFACTURING PCR14-8MM-1/4 -SS 8mm x 1/4 Inch Four Beam Coupling, SS, Clamp Style, 0.875 Inch OD, 1.063 Inch Lg.

Item: DK6NUT
Model: PCR14-8MM-1/4 -SS
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Material
Bore Dia.
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Axial Motion 0.005"
B1 Maximum Shaft Penetration 0.499"
B2 Max Shaft Penetration 0.499"
Balanced Design Yes
Bore (b1) 8 mm
Bore Tolerance -0" to +0.001"
Cap Screw M3
Dynamic Torque Non-reversing 11 lbs.-in.
Dynamic Torque Reversing 5.5 lbs.-in.
Finish Specification Bright, No Plating
Full Bearing Support Required Yes
Hex Wrench Size 2.5 mm
Length (l) 1.063"
Material Specification Type 303 Austenitic, Non-Magnetic Bar
Max. Speed 6000 RPM
Moment Of Inertia 0.0157 lbs.-in.
Number Of Screws 2 EA
Outer Diameter 0.875"
Parallel Misalignment 0.008"
Recommended Hex Key Metric Hex Keys
Recommended Shaft Tolerance -0.0005" to 0"
Screw Finish Black Oxide
Screw Material Alloy Steel
Seating Torque 2.1 N-m
Small Bore (b2) 0.25"
Static Torque 22 lbs.-ft.
Temperature -40°F to 350°F
Torque Wrench TW:BT-1R-1/4-18.3
Torsional Stiffness 0.134 lbs.-in./deg.
Zero-backlash Yes

Product Details

3°

Shipping Information

height 2.22
length 2.7
width 2.22
country of origin US
weight 0.060800
