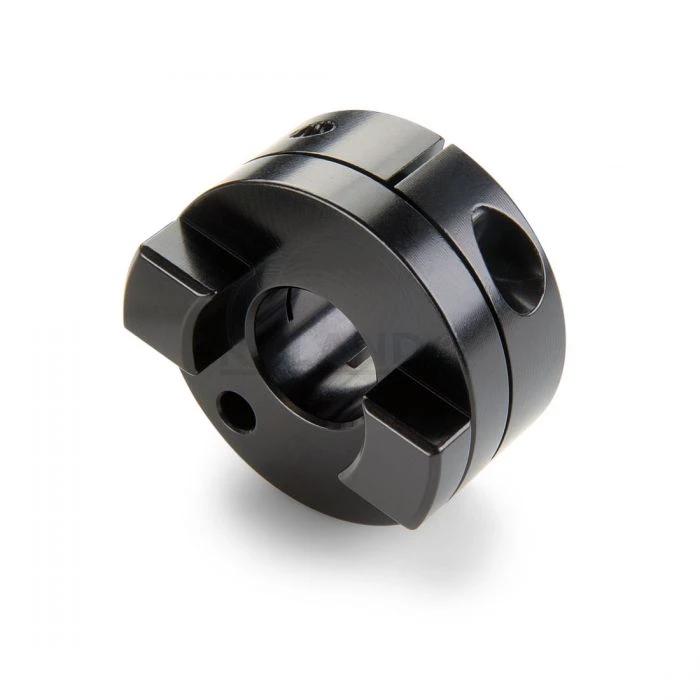

RULAND MANUFACTURING OCT36-20-A 1-1/4 Inch Oldham Coupling Hub, Aluminum, Clamp Style, 2.250 Inch OD, 1.130 Inch Lg.
Item: DK6GHG
Model: OCT36-20-A
26 In Stock
Ships within 2 days via
£84.72/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Axial Motion | 0.008" |
|---|---|
| B1 Maximum Shaft Penetration | 1.13" |
| Balanced Design | Yes |
| Bore (b1) | 1 1/4" |
| Bore Tolerance | -0" to +0.001" |
| Finish | Black Anodized |
| Finish Specification | Sulfuric Anodized Mil-A-8625 Type Ii, Class 2 And Astm B580 Type B Black Anodize |
| Forged Clamp Screw | M6 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 5 mm |
| Hub Width (lh) | 1.13" |
| Length (l) | 3.1" |
| Material Specification | 2024-T351 Aluminum Bar |
| Max Parallel Misalignment | 0.225" |
| Max. Speed | 4500 RPM |
|---|---|
| Mechanical Fuse | Yes |
| Moment Of Inertia | 0.2675 lbs.-in. |
| Number Of Screws | 1 EA |
| Outer Diameter | 2 1/4" |
| Parallel Misalignment | 0.001" |
| Recommended Inserts | OD36/57-AT |
| Recommended Shaft Tolerance | -0.0005" to 0" |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 16 N-m |
| Temperature | Acetal Disk -10°F to 150°F (-23°C to 65°) |
| Torque Specifications | Torque Ratings Vary With Insert Selection |
| Zero-backlash | Yes |
Product Details
Shipping Information
| Height | 5.72 |
|---|---|
| Length | 7.87 |
| Width | 5.72 |
| Country Of Origin | US |
|---|---|
| Weight | 0.146700 |
Related Products
| Style | Model | Length Through Bore | Coupling Size | Bore Dia. | Outside Dia. | Max. Parallel Misalignment | Coupling Overall Length | Overall Length | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | OCT12-3-A | 0.38" | Oct12 | - | - | 0.008" | 1" | - | 4500 RPM | 32.38 | |
| A | OCT12-4-A | 0.38" | Oct12 | 1/4" | - | 0.008" | 1" | - | 4500 RPM | 32.38 | |
| A | OCT16-6-A | 0.467" | Oct16 | 3/8" | 1" | 0.008" | 1.25" | 1 1/4" | 4500 RPM | 44.34 | |
| A | OCT16-8-A | 0.467" | Oct16 | 1/2" | 1" | 0.008" | 1.25" | 1 1/4" | 4500 RPM | 44.34 | |
| A | OCT21-10-A | 0.59" | Oct21 | 5/8" | 1.313" | 0.008" | 1.875" | 1 7/8" | 4500 RPM | 65.31 | |
| A | OCT21-5-A | 0.59" | Oct21 | 0.312" | - | 0.008" | 1.875" | 1 7/8" | 4500 RPM | 65.31 | |
| A | OCT21-6-A | 0.59" | Oct21 | 3/8" | 1.313" | 0.008" | 1.875" | 1 7/8" | 4500 RPM | 65.31 |
