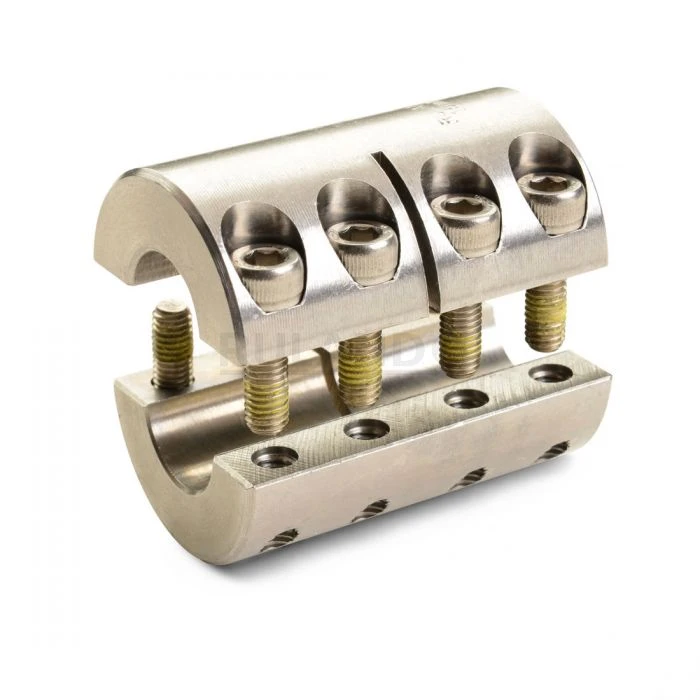

RULAND MANUFACTURING MSPX-4-4-SS 4mm x 4mm Rigid Coupling, 303 SS, Two-Piece Clamp Style, 15mm OD, 22mm Lg.
Item: DK6FHU
Model: MSPX-4-4-SS
In Stock
Get it by Friday, Apr 17
4 mm
4 mm
Stainless Steel
4 mm
£163.46/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Bore (B1)
Small Bore (B2)
Material
Smaller Bore (B2)
Specifications
| B2 Max Shaft Penetration | 11 mm |
|---|---|
| Balanced Design | Yes |
| Bore (b1) | 4 mm |
| Bore Tolerance | +0.012 mm to +0.05 mm |
| Clearance Diameter (c) Max | 15 mm |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | M2 |
| Full Bearing Support Required | No |
| Hex Wrench Size | 1.5 mm |
| Length (l) | 22 mm |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Max. Speed | 4000 RPM |
| Moment Of Inertia | 7.029 x 10 |
| Number Of Screws | 8 EA |
|---|---|
| Outer Diameter (od) | 15 mm |
| Precision Honed Bores | Yes |
| Rated Torque | 1.99 N-m |
| Recommended Gap | 0.79 mm |
| Recommended Shaft Tolerance | -0.013 mm to 0 mm |
| Screw Finish | Bright |
| Screw Location (r) | 4.6 mm |
| Screw Material | Stainless Steel |
| Seating Torque | 0.36 N-m |
| Small Bore (b2) | 4 mm |
| Temperature | -40°F to 350°F |
| Zero-backlash | Yes |
Product Details
Shipping Information
| Height | 1.5 |
|---|---|
| Length | 2.2 |
| Width | 1.5 |
| Country Of Origin | US |
|---|---|
| Weight | 0.024300 |
Related Products
| Style | Model | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Clearance Dia. | Overall Length | Coupling Material | Screw Material | Max. Torque | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | MSPX-10-10-F | 10 mm | 10 mm | 29 mm | 33 mm | 45 mm | Carbon Steel | Alloy Steel | 950 lbs.-in. | 132.26 | |
| B | MSPX-10-10-SS | 10 mm | 10 mm | 29 mm | 33 mm | 45 mm | Stainless Steel | Stainless Steel | 800 lbs.-in. | 212.64 | |
| A | MSPX-12-12-F | 12 mm | 12 mm | 29 mm | 33 mm | 45 mm | Carbon Steel | Alloy Steel | 950 lbs.-in. | 127.85 | |
| B | MSPX-12-12-SS | 12 mm | 12 mm | 29 mm | 33 mm | 45 mm | Stainless Steel | Stainless Steel | 800 lbs.-in. | 206.55 | |
| A | MSPX-14-14-F | 14 mm | 14 mm | 34 mm | 39.4 mm | 50 mm | Carbon Steel | Alloy Steel | 1750 lbs.-in. | 153.65 | |
| B | MSPX-14-14-SS | 14 mm | 14 mm | 34 mm | 39.4 mm | 50 mm | Stainless Steel | Stainless Steel | 1400 lbs.-in. | 277.52 | |
| A | MSPX-15-15-F | 15 mm | 15 mm | 34 mm | 39.4 mm | 50 mm | Carbon Steel | Alloy Steel | 1750 lbs.-in. | 153.84 |
