| 20 | $90.92 |
| 200 | Request Quote |

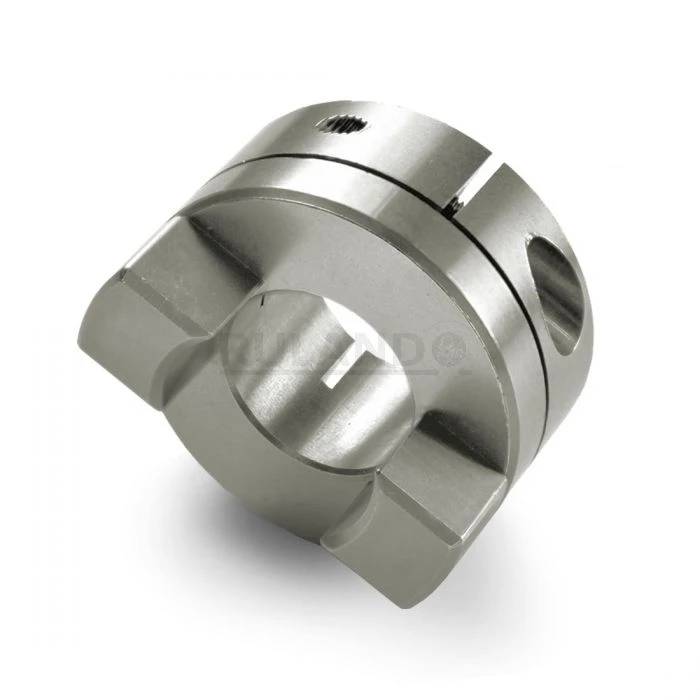

| Angular Misalignment | 0.5° |
| Axial Motion | 0.004 in (0.10 mm) |
| B1 Max Shaft Penetration | 11.9 mm |
| Balanced Design | Yes |
| Bore (B1) | 10 mm |
| Bore Tolerance | +0.03 mm / -0.00 mm |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | M3 |
| Full Bearing Support Required? | Yes |
| Hex Wrench Size | 2.5 mm |
| Hub Width (LH) | 11.85 mm |
| Length (L) | 31.8 mm |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Max Parallel Misalignment | 0.100 in (2.54 mm) |
| Maximum Speed | 4,500 RPM |
| Mechanical Fuse? | Yes |
| Moment of Inertia | 3.725 x 10 |
| Number of Screws | 1 ea |
| Outer Diameter (OD) | 25.4 mm |
| Parallel Misalignment | 0.008 in (0.20 mm) |
| Recommended Inserts | OD16/25-AT |
| Recommended Shaft Tolerance | +0.000 mm / -0.013 mm |
| Screw Finish | Bright |
| Screw Material | 18-8 300 Series Stainless Steel |
| Seating Torque | 1.1 Nm |
| Temperature | Acetal Disk -10°F to 150°F (-23°C to 65°) |
| Torque Specifications | Torque ratings vary with insert selection |
| Zero-Backlash? | Yes |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
