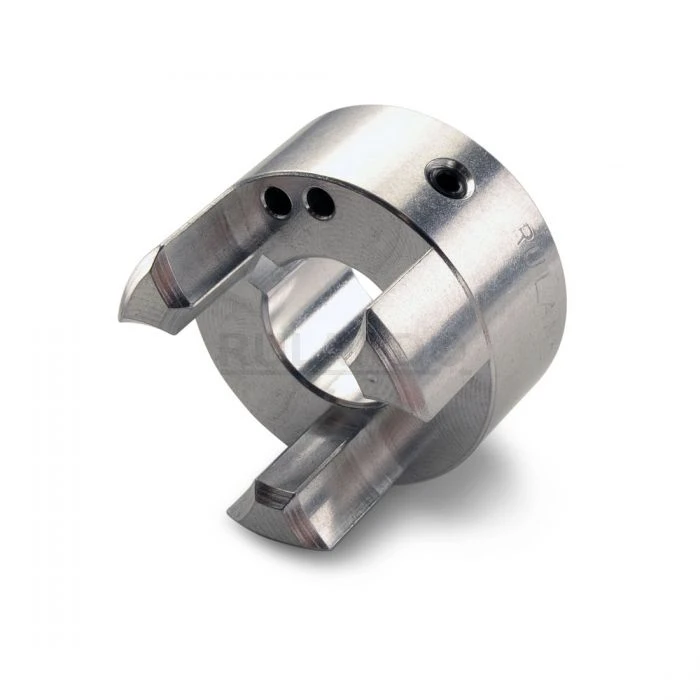

RULAND MANUFACTURING MJSC41-11-A 11mm Jaw Coupling Hub, Aluminum, Set Screw Style With Keyway, 41.3mm OD, 18.0mm Lg.
Item: DK6GEE
Model: MJSC41-11-A
10 In Stock
Ships within 2 days via
41 mm
11 mm
£91.01/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| B1 Maximum Shaft Penetration | 18 mm |
|---|---|
| Balanced Design | Yes |
| Bore (b1) | 11 mm |
| Bore Tolerance | -0 mm to +0.03 mm |
| Fail Safe | Yes |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Set Screw | M5 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 2.5 mm |
| Hub Width (lh) | 18.05 mm |
| Keyway (k) | 4 mm |
| Length (l) | 2.086" |
| Material Specification | 2024-T351 Aluminum Bar |
| Max. Speed | 8000 RPM |
|---|---|
| Misalignment | Misalignment Ratings Vary With Insert Selection |
| Moment Of Inertia | 1.717 x 10 |
| Number Of Screws | 2 EA 90° Apart |
| Outer Diameter | 1.625" |
| Recommended Gap Between Hubs | 0.05" |
| Recommended Inserts | JD26/41-98R |
| Recommended Shaft Tolerance | -0.013 mm to 0 mm |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 4 N-m |
| Temperature | -10°F to 180°F |
| Torque Specifications | Torque Ratings Vary With Insert Selection |
| Zero-backlash | Yes |
Product Details
Shipping Information
| Height | 4.13 |
|---|---|
| Length | 5.3 |
| Width | 4.13 |
| Country Of Origin | US |
|---|---|
| Weight | 0.071100 |
