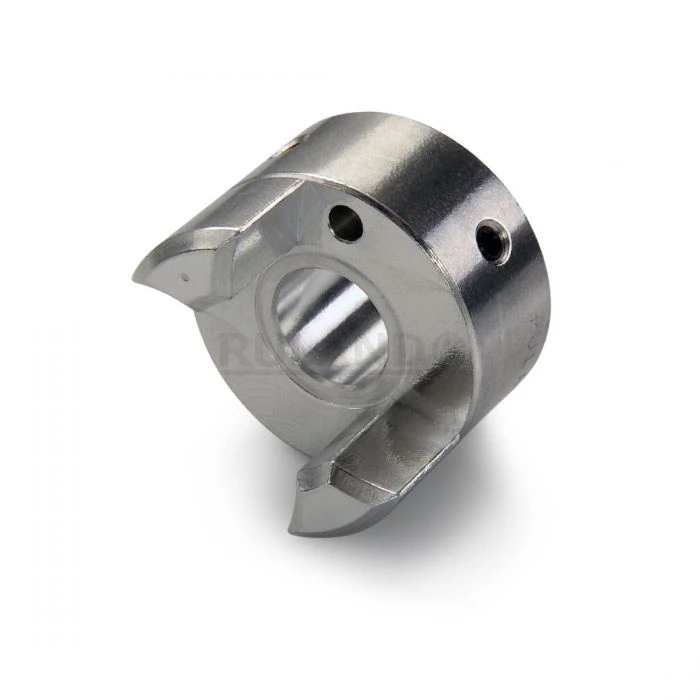

RULAND MANUFACTURING MJS25-7-A 7mm Jaw Coupling Hub, Aluminum, Set Screw Style, 25.4mm OD, 11.9mm Lg.
Item: DK6GDB
Model: MJS25-7-A
17 In Stock
Ships within 2 days via
25 mm
7 mm
£37.43/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| B1 Max Shaft Penetration | 11.9 mm |
|---|---|
| Balanced Design | Yes |
| Bore (b1) | 7 mm |
| Bore Tolerance | -0 mm to +0.03 mm |
| Fail Safe | Yes |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Set Screw | M4 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 2 mm |
| Hub Width (lh) | 11.85 mm |
| Length (l) | 1.39" |
| Material Specification | 2024-T351 Aluminum Bar |
| Max. Speed | 8000 RPM |
| Misalignment | Misalignment Ratings Vary With Insert Selection |
|---|---|
| Moment Of Inertia | 1.610 x 10 |
| Number Of Screws | 2 EA 90° Apart |
| Outer Diameter | 1" |
| Recommended Gap Between Hubs | 0.03" |
| Recommended Inserts | JD16/25-98R |
| Recommended Shaft Tolerance | -0.013 mm to 0 mm |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 2.2 N-m |
| Temperature | -10°F to 180°F |
| Torque Specifications | Torque Ratings Vary With Insert Selection |
| Zero-backlash | Yes |
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 3.53 |
| Width | 2.54 |
| Country Of Origin | US |
|---|---|
| Weight | 0.017600 |
Related Products
| Style | Model | Outside Dia. | Coupling Size | Bore Dia. | Bore Tolerance | Size | Overall Length | Length Through Bore | Hub Projection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | MJS15-3-A | 15 mm | MJS15 | 3 mm | 0 mm to 0.05 mm | MJS15 | 7.6 mm | 7.6 mm | 7.6 mm | 31.42 | |
| A | MJS15-4-A | 15 mm | MJS15 | 4 mm | 0 mm to 0.05 mm | MJS15 | 7.6 mm | 7.6 mm | 7.6 mm | 31.42 | |
| A | MJS15-5-A | 15 mm | MJS15 | 5 mm | 0 mm to 0.05 mm | MJS15 | 7.6 mm | 7.6 mm | 7.6 mm | 31.42 | |
| A | MJS15-6-A | 15 mm | MJS15 | 6 mm | 0 mm to 0.05 mm | MJS15 | 7.6 mm | 7.6 mm | 7.6 mm | 31.42 | |
| A | MJS19-4-A | 19.1 mm | MJS19 | 4 mm | 0 mm to 0.05 mm | MJS19 | 9.8 mm | 9.8 mm | 9.8 mm | 35.22 | |
| A | MJS19-5-A | 19.1 mm | MJS19 | 5 mm | 0 mm to 0.05 mm | MJS19 | 9.8 mm | 9.8 mm | 9.8 mm | 35.22 | |
| A | MJS19-6-A | 19.1 mm | MJS19 | 6 mm | 0 mm to 0.05 mm | MJS19 | 9.8 mm | 9.8 mm | 9.8 mm | 34.31 |
