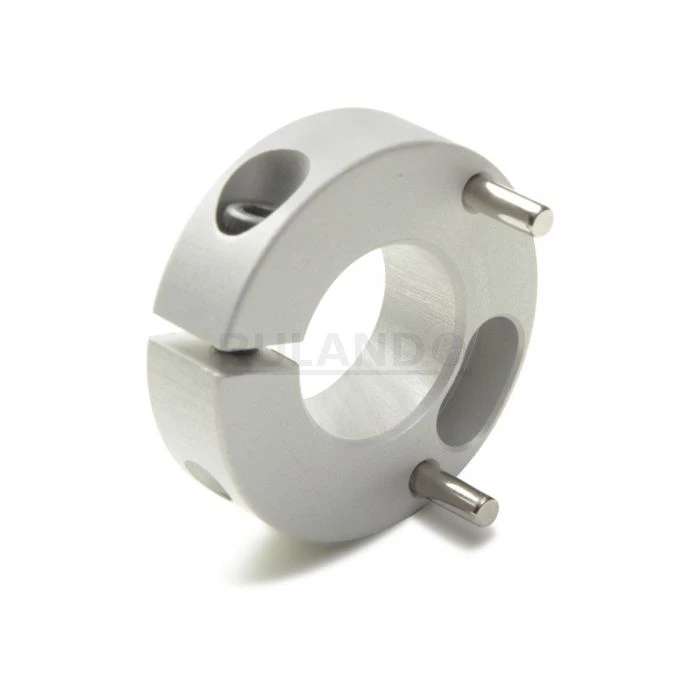

RULAND MANUFACTURING MCPTS25-11-A Controlflex Coupling Hub, 11mm Bore, 25.0mm O.D., 20.5mm Length

Item: DK6QQA
Model: MCPTS25-11-A
12 In Stock

Ships within 2 days via

£24.24/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Axial Motion 0.5 mm
B1 Maximum Shaft Penetration 7 mm
Balanced Design Yes
Bore (b1) 11 mm
Bore Tolerance +0.02 mm to +0.06 mm
Finish Clear Anodized
Finish Specification Clear Anodized
Forged Clamp Screw M2.5
Full Bearing Support Required Yes
Hex Wrench Size 2 mm
Hub Width (lh) 7 mm
Length (l) 0.807"
Material Specification 6082 Aluminum Bar
Max. Speed 22000 RPM
Number Of Screws 1 EA
Outer Diameter 0.984"
Parallel Misalignment 0.7 mm
Peak Torque 1 N-m
Rated Torque 0.7 N-m
Recommended Inserts CPFRG16/25-AT
Screw Finish Black Oxide
Screw Location (r) 8 mm
Screw Material Alloy Steel
Seating Torque 0.7 N-m
Space Between Hubs (ls) 0.255"
Temperature -22°F to 175°F
Torsional Stiffness 0.65 N-m/deg.
Zero-backlash Yes

Product Details

Shipping Information

Height 2.5
Length 2.05
Width 2.5
Country Of Origin DE
Weight 0.006800
