| 20 | $21.54 |
| 200 | Request Quote |

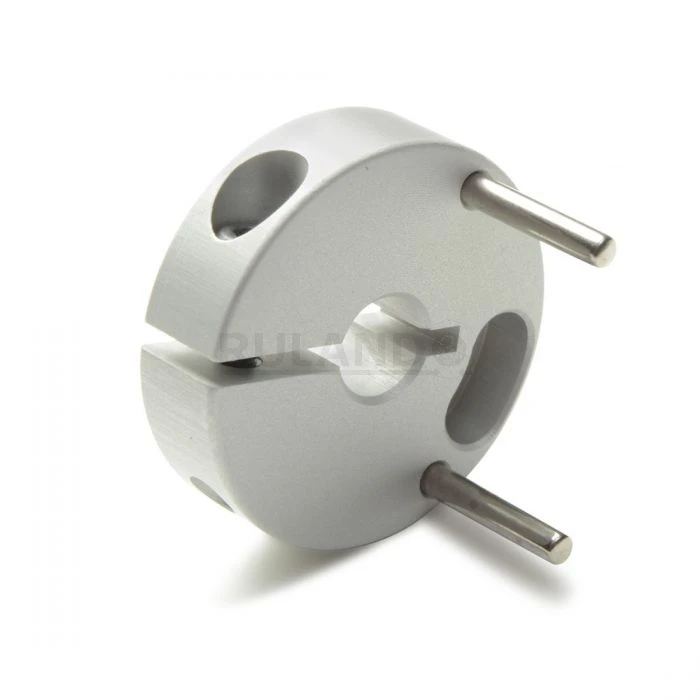

| Angular Misalignment | 1.0° |
| Axial Motion | 0.50 mm |
| B1 Max Shaft Penetration | 9.5 mm |
| Balanced Design | Yes |
| Bore (B1) | 9 mm |
| Bore Tolerance | +0.05 mm / +0.01 mm |
| Finish | Clear Anodized |
| Finish Specification | Clear Anodized |
| Forged Clamp Screw | M3 |
| Full Bearing Support Required? | Yes |
| Hex Wrench Size | 2.5 mm |
| Hub Width (LH) | 9.50 mm |
| Length (L) | 1.220 in (31.0 mm) |
| Material Specification | 6082 Aluminum Bar |
| Maximum Speed | 22,000 RPM |
| Number of Screws | 1 ea |
| Outer Diameter (OD) | 0.984 in (25.0 mm) |
| Parallel Misalignment | 0.70 mm |
| Peak Torque | 2 Nm |
| Rated Torque | 1.4 Nm |
| Recommended Inserts | CPFRG16/25-AT |
| Screw Finish | Black Oxide |
| Screw Location (R) | 8 mm |
| Screw Material | Alloy Steel |
| Seating Torque | 1.3 Nm |
| Space Between Hubs (LS) | 0.472 in (12.0 mm) |
| Temperature | -22°F to 175°F (-30°C to 80°C) |
| Torsional Stiffness | 1.30 Nm/Deg |
| Zero-Backlash? | Yes |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.5 |
| Ship length (cm) | 3.1 |
| Ship width (cm) | 2.5 |
| Country of Origin | DE |
