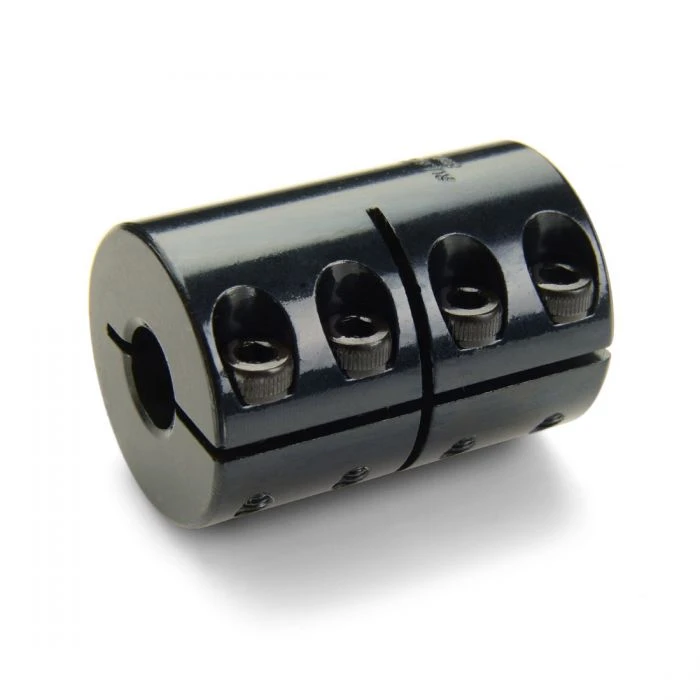

| B1 Max Shaft Penetration | 1.280 in (32.5 mm) |
| B2 Max Shaft Penetration | 1.280 in (32.5 mm) |
| Bore (b1) | 20 mm |
| Bore Tolerance | +0.0020 in / +0.0005 in (+0.050 mm / + 0.012 mm) |
| Clearance Diameter (c) Max | 1.925 in (48.9 mm) |
| Finish Specification | Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried |
| Forged Clamp Screw | M6 |
| Full Bearing Support Required? | No |
| Hex Wrench Size | 5.0 mm |
| Length (l) | 2.559 in (65.0 mm) |
| Material Specification | 1215 Carbon Steel Bar |
| Maximum Speed | 4,000 RPM |
| Moment Of Inertia | 0.475874 lb-in |
| Number Of Screws | 4 ea |
| Nypatch Anti-vibration Hardware? | Yes |
| Outer Diameter (od) | 1.654 in (42 mm) |
| Rated Torque | 3097 in-lb (350 Nm) |
| Recommended Shaft Tolerance | +0.0000 / -0.0005 " (+0.000 / -0.013 mm) |
| Screw Finish | Black Oxide |
| Screw Location (r) | 0.606 in (15.4 mm) |
| Screw Material | Alloy Steel with |
| Seating Torque | 16 Nm |
| Small Bore (b2) | 0.6250 in |
| Temperature | -40°F to 350°F (-40°C to 176°C) |
| Zero-backlash? | Yes |
| Ship weight (kg) | 0.53 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 4.2 |
| Country of Origin | US |
