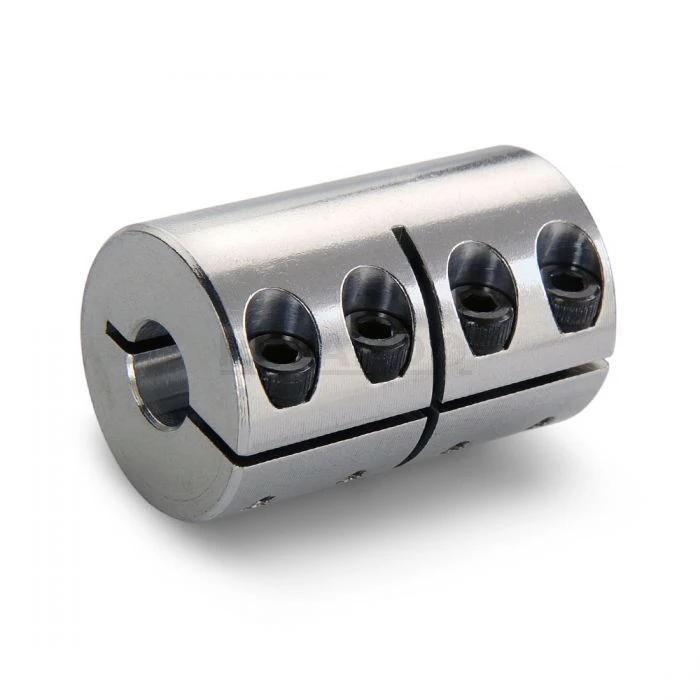

| B1 Max Shaft Penetration | 0.590 in (15.0 mm) |
| B2 Max Shaft Penetration | 0.590 in (15.0 mm) |
| Bore (b1) | 0.2500 in |
| Bore Tolerance | +0.0020 in / +0.0005 in (+0.050 mm / + 0.012 mm) |
| Clearance Diameter (c) Max | 0.846 in (21.5 mm) |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | M3 |
| Full Bearing Support Required? | No |
| Hex Wrench Size | 2.5 mm |
| Length (l) | 1.181 in (30.0 mm) |
| Material Specification | 2024-T351 Aluminum Bar |
| Maximum Speed | 4,000 RPM |
| Moment Of Inertia | 0.003015 lb-in |
| Number Of Screws | 4 ea |
| Nypatch Anti-vibration Hardware? | Yes |
| Outer Diameter (od) | 0.709 in (18 mm) |
| Rated Torque | 265 in-lb (30 Nm) |
| Recommended Shaft Tolerance | +0.0000 / -0.0005 " (+0.000 / -0.013 mm) |
| Screw Finish | Black Oxide |
| Screw Location (r) | 0.232 in (5.9 mm) |
| Screw Material | Alloy Steel with |
| Seating Torque | 2.1 Nm |
| Small Bore (b2) | 6 mm |
| Temperature | -40°F to 225°F (-40°C to 107°C) |
| Zero-backlash? | Yes |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 3 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
