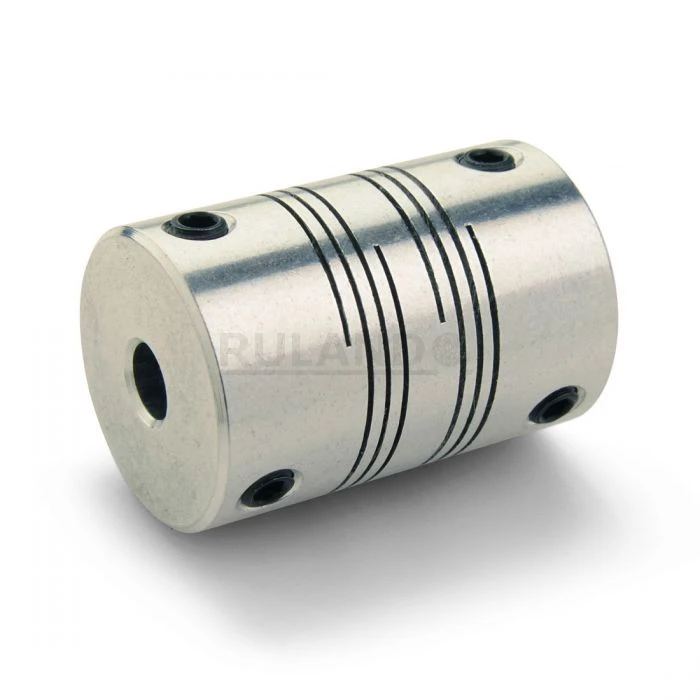

RULAND MANUFACTURING FSMR38-12-11-A 12mm x 11mm Six Beam Coupling, Aluminum, Set Screw Style, 38.1mm OD, 57.2mm Lg.

Item: DK6KMA
Model: FSMR38-12-11-A
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Angular Misalignment 3°
Axial Motion 0.38 mm
B1 Max Shaft Penetration 27.3 mm
B2 Max Shaft Penetration 27.3 mm
Bore (b1) 12 mm
Bore Tolerance -0 mm to +0.025 mm
Dynamic Torque Non-reversing 6.22 N-m
Dynamic Torque Reversing 3.11 N-m
Finish Specification Bright, No Plating
Forged Set Screw M6
Full Bearing Support Required Yes
Hex Wrench Size 3 mm
Length (l) 57.2 mm
Material Specification 7075-T651 Extruded And Drawn Aluminum Bar
Max. Speed 6000 RPM
Moment Of Inertia 30.032 x 10
Number Of Screws 4 EA
Outer Diameter (od) 38.1 mm
Parallel Misalignment 0.76 mm
Recommended Hex Key Metric Hex Keys
Recommended Shaft Tolerance -0.013 mm to 0 mm
Screw Finish Black Oxide
Screw Material Alloy Steel
Seating Torque 7.2 N-m
Small Bore (b2) 11 mm
Static Torque 12.43 N-m
Temperature -40°F to 225°F
Torque Wrench TW:BT-4C-3/8-64
Torsional Stiffness 6875 N-m/deg.
Zero-backlash Yes

Product Details

Coupling

Shipping Information

height 3.81
length 5.72
width 3.81
country of origin US
weight 0.146700
