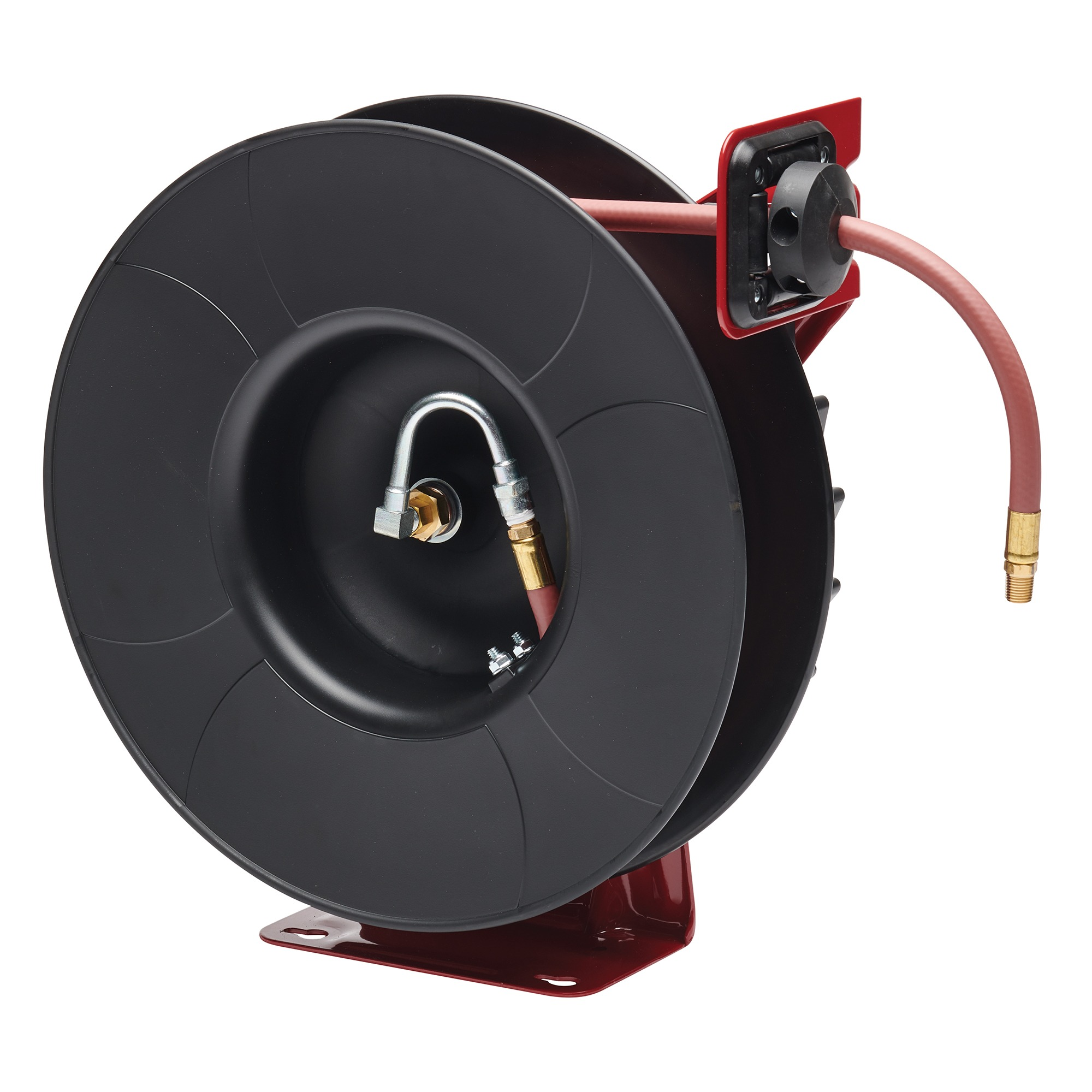

REELCRAFT RT835-OLP Hose Reel, Inner Diameter 1/2 Inch, Hose Length 35 Feet

Item: AY9XBK
Model: RT835-OLP
In Stock

Get it by Wednesday, Apr 15

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£613.72
5.00% off
£583.03/unit (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Hose Reel
Base Motion Type Stationary
Bearing Construction Permanently Lubricated
Corrosion-resistant Yes
Dimension A 17 7/8"
Dimension B 16.5"
Dimension C 6"
Dimension D 2.25"
Dimension E 6 1/4"
Drive Type Spring Return
Enclosed No
Fasteners Included No
Features Guide Arm Adjusts To Seven Positions, Industrial And Commercial Use
Fitting Gender Male x Male
Fitting Size 1/2" x 1/2"
Fitting Type NPT x NPT
For Dual Hose No
Height 17 7/8"
Hose Yes
Hose Capacity 35 ft.
Hose Color Red
Hose Cover Material PVC
Hose End Configuration 1/2" MNPT
Hose End Size 1/2"
Hose End Type MNPT
Hose Fitting A Gender Male
Hose Fitting A Material Brass
Hose Fitting A Size 1/2"
Hose Fitting A Type NPT
Hose Fitting B Gender Male
Hose Fitting B Material Brass
Hose Fitting B Size 1/2"
Hose Fitting B Type NPT
Hose Included Yes
Hose Inside Dia. 1/2"
Hose Length 35 ft.
Hose Outside Dia. 3/4"
Hose Outside Diameter 0.75"
Hose Reel Primary Application Air, Water
Hose Reel Type Ceiling, Floor, Wall Mount Hose Reel
Hose Tube Material PVC
Includes Hose, Bumper
Includes Hose Yes
Includes Hose Stop Yes
Includes Leader Hose No
Inlet Size 1/2"
Inlet Type FNPT
Latch Type Spring Loaded
Length 16 1/2"
Max. Pressure 300 psi
Max. Temp. 150°F
Maximum Operating Pressure 300 psi
Maximum Operating Temperature 150°F
Minimum Operating Temperature 32°F
Mount Base Height 8"
Mount Base Width 4 19/32"
Mount Hole Diameter 5/16"
Mounting Ceiling, Floor, Wall
Mounting Hole Center To Center Height 6"
Mounting Hole Center To Center Width 2 1/4"
Number Of Guide Arms 1
Number Of Mount Holes 4
Overall Height 17 7/8"
Overall Length 16 1/2"
Overall Width 6 1/4"
Pedestal Type Single Pedestal
Pressure 300 psi
Reel Color Black, Red
Reel Dia. 419 mm
Reel Diameter 7 11/16"
Reel Material Carbon Steel
Reel Outlet Size 1/2"
Reel Outlet Type FNPT
Reel Width 6 1/4"
Series Rt Series Series
Speed Limited Retraction No
Spiral Hose Guard No
Swivel Inlet Gender Female
Swivel Inlet Size 1/2"
Swivel Inlet Thread Size 1/2"-14
Swivel Inlet Type NPT
Swivel Material Steel
Swivel Outlet Gender Male
Swivel Outlet Size 1/2"
Swivel Outlet Thread Size 1/2"-14
Swivel Outlet Type NPT
Twin Hose Compatible No
Width 6 1/4"

Product Details

,The Reelcraft Series RT is an economical choice for a medium duty, lighter-weight, spring retractable hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use., , ,Spool is constructed from a rugged engineered plastic, ,Individually powder coated steel components offer maximum protection from premature corrosion, ,The steel guide arm and base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight, ,Widened ratchet and latch pawl design greatly reduces wear and increases service life, ,Low-pressure 1/2 in. x 35 ft. PVC hose included; hose is for air or water service only, ,The industrial-grade drive spring completely containerized and permanently sealed, ,Inlet hose is plumbed into the base to eliminate the risk of undue stress on the swivel, ,Guide arm adjusts to seven positions, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,

Shipping Information

height 48.26
length 43.18
width 15.88
country of origin US
weight 12.150000
