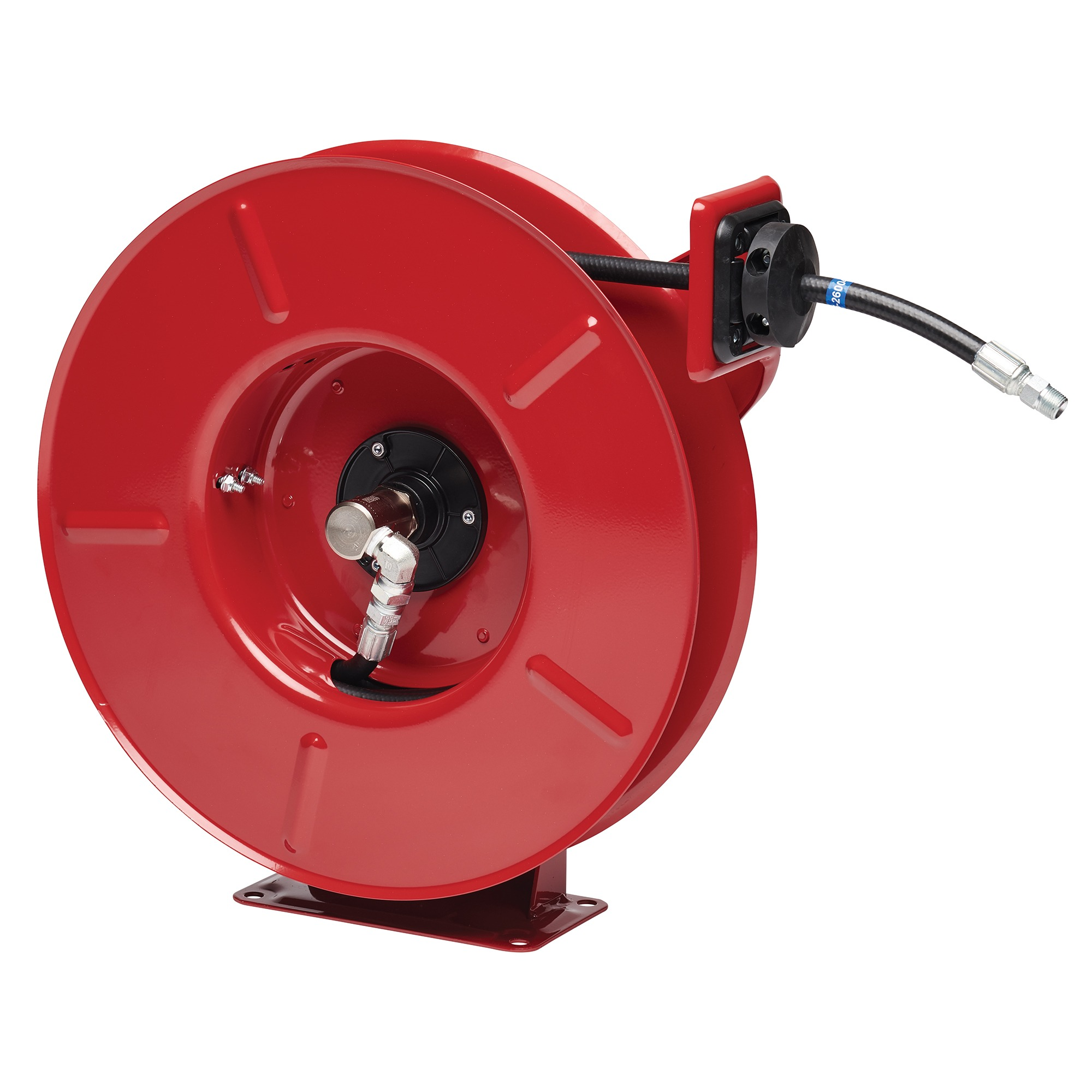

REELCRAFT 7450OHP Hose Reel Industrial 5000 Psi 210f
Item: AE7RJP
Model: 7450OHP
In Stock
Get it by Thursday, Apr 16
5.00% off
£1284.91/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base Motion Type | Stationary |
|---|---|
| Bearing Construction | Permanently Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Duty Rating | Industrial |
| Enclosed | No |
| Fasteners Included | No |
| Features | Heavy Duty |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 20 1/4" |
| Hose Capacity | 50 ft. |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 1/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. | 1/4" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 9/16" |
| Hose Reel Primary Application | Grease |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Includes | Hose, Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch | Cam Latch With Roller Guide |
| Latch Type | Spring Loaded |
| Length | 19 3/4" |
| Max. Pressure | 5000 psi |
|---|---|
| Max. Temp. | 210°F |
| Maximum Operating Pressure | 5000 psi |
| Minimum Operating Temperature | 32°F |
| Mount Base Height | 8 61/64" |
| Mount Base Width | 4 61/64" |
| Mount Hole Diameter | 1/2" |
| Mounting | Bench, Ceiling, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 7 13/16" |
| Mounting Hole Center To Center Width | 3 7/8" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Height | 20 1/4" |
| Overall Length | 19 3/4" |
| Overall Width | 7" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | reelcraft-7450ohp.pdf |
| Reel Color | Red |
| Reel Diameter | 9" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 7" |
| Seal Material | Neoprene |
| Seal Type | Neoprene |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 7" |
Product Details
Shipping Information
| height | 58.17 |
|---|---|
| length | 56.9 |
| width | 21.59 |
| hs code | 3917390050 |
|---|---|
| country of origin | US |
| weight | 25.560000 |
