Red Hat 8316G064120/60 110/50DA | 24W630 | Solenoid Valve 3/2 1/2 Inch Nc 120/110v

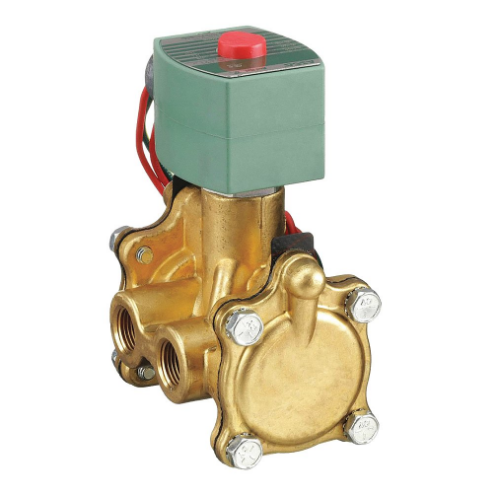

RED HAT 8316G064120/60 110/50DA Solenoid Valve 3/2 1/2 Inch Nc 120/110v

Item: AB7ZPY

Model: 8316G064120/60 110/50DA

13 In Stock

Ships within 2 days via

Specifications

Application	Controlling Air, Inert Gas, Liquids
Body Material	Brass
Class	Class F
Coefficient Of Volume	3.2
Coil Enclosure	Watertight No Junction Box
Coil Insulation Class	F
Electrical Connections	1/2" Conduit W/18" Leads
For Media	Air, Inert Gases, Water
Frequency	60 Hz
Hz	50/60 Hz
Includes Coil	Yes
Includes Seal	Yes
Inlet Connection Type	NPT
Ip Rating	IP66
Max. Ambient Temperature	125°F
Max. Fluid Temp.	180°F
Max. Fluid Temperature	180°F
Max. Operating Pressure Differential - Air/inert Gas	150 psi
Max. Operating Pressure Differential - Light Oil	Not Rated
Max. Operating Pressure Differential - Steam	Not Rated
Max. Operating Pressure Differential - Water	125 psi
Max. Operating Pressure Differential Air/inert Gas	150 psi
Max. Operating Pressure Differential Light Oil	Not Rated
Max. Operating Pressure Differential Water	125 psi
Media Type	Air, Inert Gas, Water

Min. Ambient Temperature	32°F
Min. Operating Pressure Differential	10 psi
Mounting Orientation	Horizontal, Vertical
Nema Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
Nominal Pipe Size	1/2"
Operating Environment	Corrosive
Operation	Pilot Operated
Operation Type	Pilot Operated
Orifice Dia.	5/8"
Orifice Diameter	5/8"
Outlet Connection Type	NPT
Overall Height	5 3/32"
Overall Length	2 3/4"
Overall Width	4 13/16"
Pipe Size	1/2"
Seal Material	Nbr
Standards	Ce, Csa
Valve Configuration	Normally Closed
Valve Positions	2 Position
Valve Type	High Flow
Valve Ways	3-Way
Valve Ways And Positions	3 Ways And 2 Positions
Voltage	110/120V AC
Wattage	6.1 W
