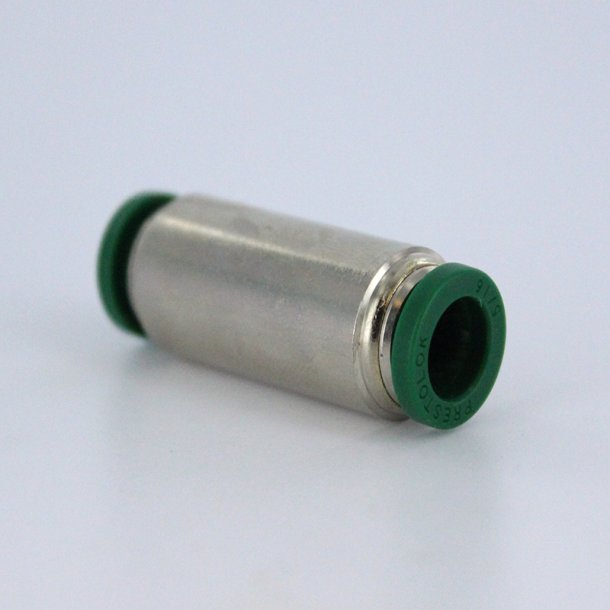

PARKER 62PLP-5 Union, Push-To-Connect Fitting

Item: EA8XJN
Model: 62PLP-5
In Stock

Get it by Friday, Apr 17

Size
£13.93/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Product Datasheet parker-164plp-2.pdf
Application Air, Inert Gases, Oils, Vacuum
Color Silver
Compatible Tube Hardness 95 Shore A, 90 Shore A
Compatible Tube Material Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi-Rigid Nylon
Connection Type 5/16" Push To Connect Connection On All Ends
Design Push-In (Push-To-Connect) Design#62PLP Model
Equivalent To 62PLP5
Finish/coating Nickel Plated
Fitting Material Brass
Fitting Side A Connection Type Push-to-Connect
Fitting Type Straight Fitting
For Tube Outside Dia. 5/16"
function Pneumatic Union Fitting
Includes Pre-applied Thread Sealant No
Main Function Air Fitting
Material Brass Body (Nickel-Plated)
Material Grade Grade C36000
Max. Operating Pressure 300 psi
Max. Operating Temp. 200°F
Min. Operating Temp. 0°F
no. of inlet 1
no. of outlet 1
Overall Length 1.65625"
Release Ring Color Black
Release Ring Material Nitrile Rubber
Release Type Button
Resistance Properties Chemical Resistant
Size 5/16" Tube x 5/16" Tube
Specific Fitting Shape Union
Standard Logo ul.png
Sub Range Name Prestolok Series
System Of Measurement Imperial
temp. 0°F to 200°F
Thread Sealant Type Acrylic
Type Prestolok
Vacuum Rating 28 in. hg

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin US
Weight 1.125000
