PARKER

See our 858 reviews on trustpilot

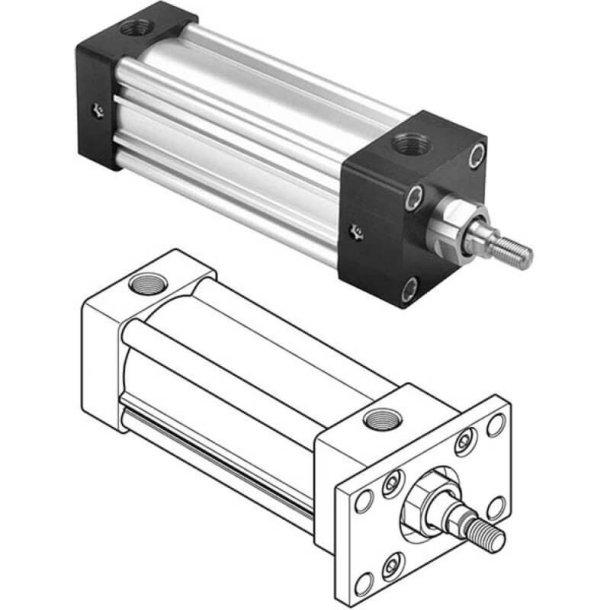

PARKER 3.25CJ4MA3U38HAC08.00 Pneumatic Cylinder

Item: EB8VWB
Model: 3.25CJ4MA3U38HAC08.00
In Stock

Get it by Friday, Apr 17

Stroke Length
£1,043.90/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 1-1/4"-12 UNF Male Intermediate Threaded Rod-End
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 1 1/4"-12 UNF Male Intermediate Threaded Rod-End
Design Piston Magnet "Lipseal" Piston Intermediate Male Rod-End Thread Composite High-Load Rod Bearing Cushion At Both Ends Nfpa Interchangeable Model Repairable
Design Piston Magnet LipSeal Piston Intermediate Male Rod End Thread Composite High-Load Rod Brg. Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Composite Bearing Pressed Into Bronze Alloy Gland Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Head Rectangular Flange Mounting (NFPA MF1)
Mounting Mode Head Rectangular Flange Mounting NFPA MF1
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 8"

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
