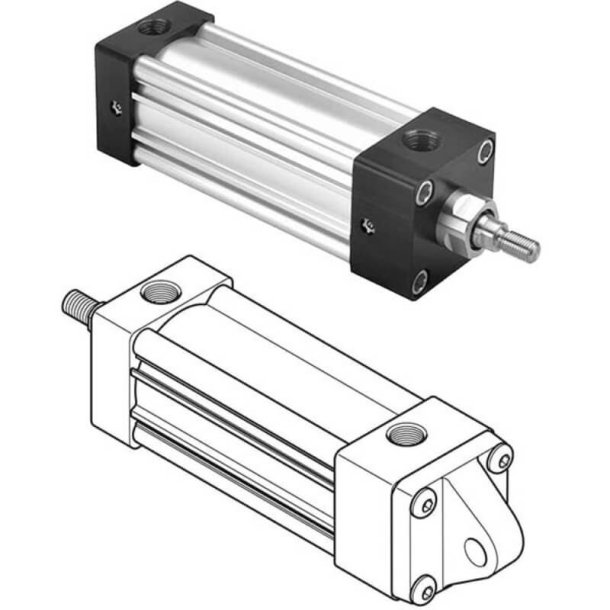

PARKER 3.25CBE4MA1UE155AC72.00 Pneumatic Cylinder

Item: EB3ZTD
Model: 3.25CBE4MA1UE155AC72.00
In Stock

Get it by Wednesday, Apr 15

£1822.09/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports Special Rod-End For Use With Split Coupler
Design "LipSeal" Piston Fluorocarbon Rod Wiper And Rod Seals Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1" No.1
Dia. 1"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Fluoro Carbon Rod Wiper And Seals Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Cap Detachable Eye Mounting (NFPA MP4)
Mounting Mode Cap Detachable Eye Mounting NFPA MP4
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 72"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
