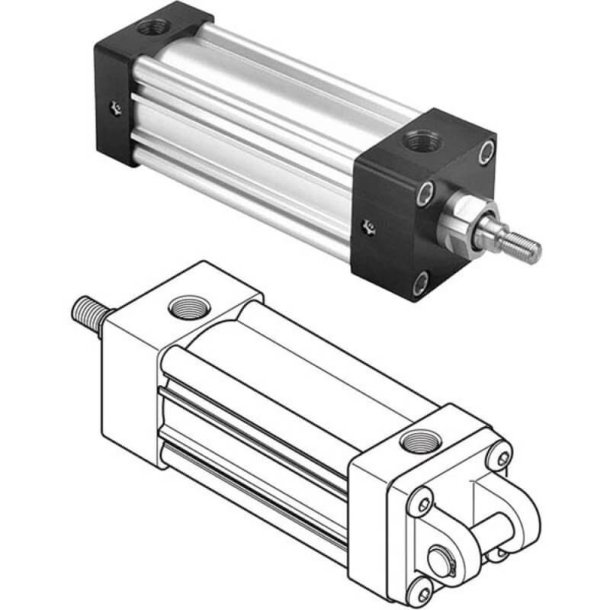

PARKER 3.25CBC4MA3U38AC21.00 Pneumatic Cylinder

Item: EB7LZU
Model: 3.25CBC4MA3U38AC21.00
In Stock

Get it by Wednesday, Apr 15

£1048.97/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 1-1/4"-12 UNF Male Intermediate Threaded Rod-End
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 1 1/4"-12 UNF Male Intermediate Threaded Rod-End
Design Piston Magnet "Lipseal" Piston Intermediate Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Repairable
Design Piston Magnet LipSeal Piston Intermediate Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Cap Detachable Clevis Mounting (NFPA MP2)
Mounting Mode Cap Detachable Clevis Mounting NFPA MP2
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 21"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
