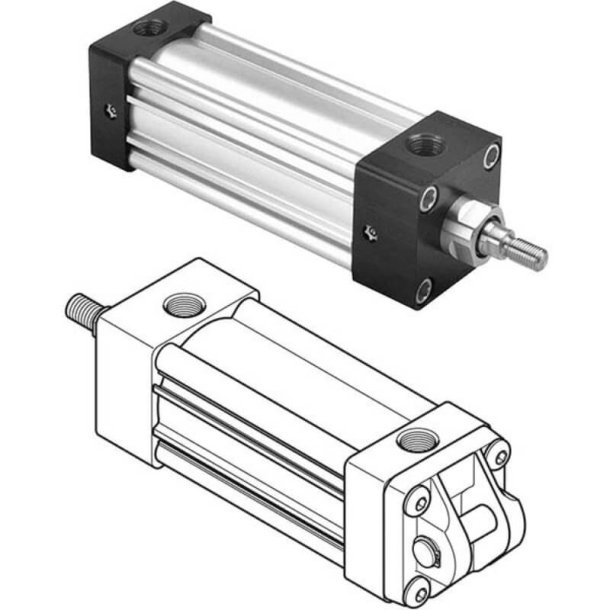

PARKER 3.25CBB4MADU34AC02.50 Pneumatic Cylinder

Item: EB2BBZ
Model: 3.25CBB4MADU34AC02.50
In Stock

Get it by Friday, Apr 17

£870.71/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End
Design Piston Magnet "Lipseal" Piston 1/4" Bumper (Both Ends) Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Repairable
Design Piston Magnet LipSeal Piston 1/4" Bumper (Both Ends) Small Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Cap Fixed Clevis Mounting (NFPA MP1)
Mounting Mode Cap Fixed Clevis Mounting NFPA MP1
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 2 1/2"

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
