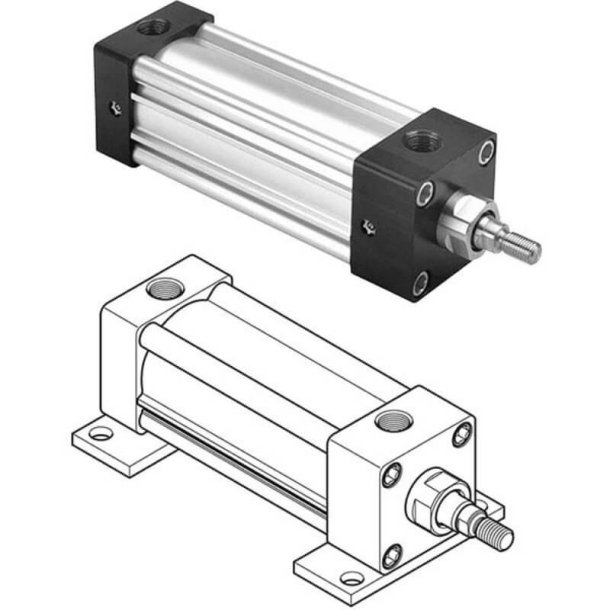

PARKER 2.00NB4MA3U38A40.00 Pneumatic Cylinder
Item: EB7QJC
Model: 2.00NB4MA3U38A40.00
In Stock
Get it by Thursday, Apr 16
40"
£844.98/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +165°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 3/8" NPT Threaded Pneumatic Ports 7/8"-14 UNF Male Intermediate Threaded Rod-End |
| Design | Piston Magnet "LipSeal" Piston Intermediate Male Rod-End Thread NFPA Interchangeable Model Repairable |
| dia. | 1" |
| function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Base Bar Mounting (Non-NFPA Style) |
| Mounting Mode | Base Bar Mounting Non NFPA Style |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Standard Logo | rohs.png |
| Stroke Length | 40" |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 1.125000 |
