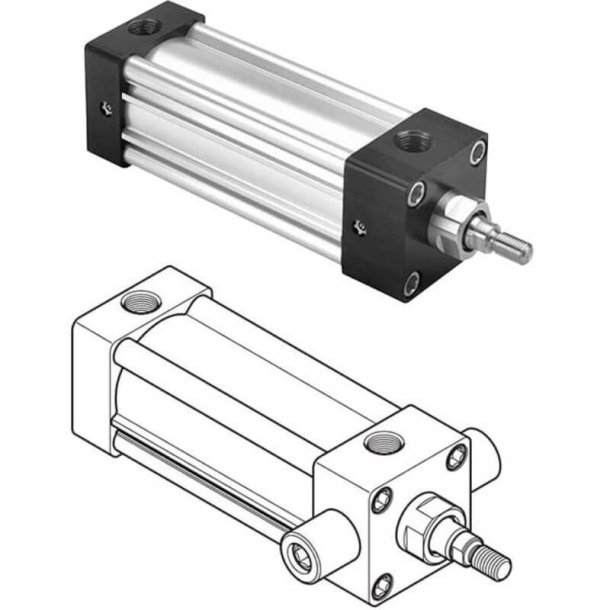

PARKER 2.00D4MABU18A01.50 Pneumatic Cylinder

Item: EB8NFL
Model: 2.00D4MABU18A01.50
In Stock

Get it by Thursday, Apr 16

£402.4/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 2"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/8" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Intermediate Threaded Rod End
Connection Type 2 x 3/8" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Intermediate Threaded Rod-End
Design LipSeal Piston 1/4" Bumper (Both Ends) Intermediate Male Rod End Thread NFPA Interchangeable Model Repairable
Design "Lipseal" Piston 1/4" Bumper (Both Ends) Intermediate Male Rod-End Thread Nfpa Interchangeable Model Repairable
dia. 5/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Head Trunnion Mounting (NFPA MT1)
Mounting Mode Head Trunnion Mounting NFPA MT1
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 1 1/2"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
