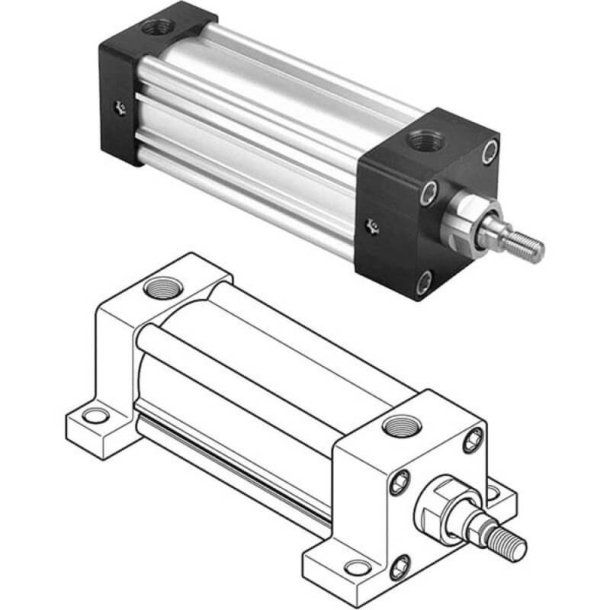

PARKER 2.00CC4MA3U16AC12.00 Pneumatic Cylinder

Item: EB2FZT
Model: 2.00CC4MA3U16AC12.00
In Stock

Get it by Thursday, Apr 16

£512.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 2"
Bumpers W/O Bumpers
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/8" NPT Threaded Pneumatic Ports 5/8"-18 UNF Male Full Threaded Rod-End
Cylinder Material Clear Anodized Aluminum Alloy
Cylinder Style Tie Rod, NFPA
Design Piston Magnet "LipSeal" Piston Full Male Rod-End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 5/8"
End Type Single Rod
Filter Media Filtered Air
Filtration Requirement 40 µm
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Min. Temp. Range -10°F
Mounting Side Lug Mounting (NFPA MS2)
Mounting Mode Side Lug Mounting (NFPA MS2)
Piston Material Aluminum
Piston No. 1
Port Size 0.375
Port Type NPTF
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod End Style Male, Full
Rod Material Case Hardened Chrome Plated Carbon Steel
Rod Thread Type UNF
Seal Material Nitrile
Seal Type Lip Seal
Series 4MA Series
Shape Rectangular
Standard Logo rohs.png
Stroke Length 12"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
