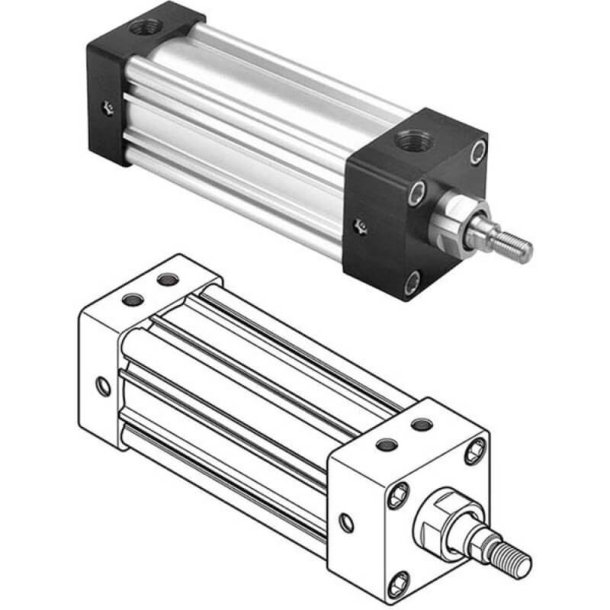

PARKER 1P4MA0010443 Pneumatic Cylinder
Item: EB2KFK
Model: 1P4MA0010443
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
2"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +165°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 3/8" NPT Threaded Pneumatic Ports Special UNF Rod-End Threading (Please Specify At Order Time) |
| Design | Piston Magnet "Lipseal" Piston Cushion At Both Ends Nfpa Interchangeable Model Based On Model 1.50Cte4Ma3Us13Ac02.00 Special Model Special Unf Rod-End Thread Repairable |
| Design | Piston Magnet LipSeal Piston Cushion At Both Ends NFPA Interchangeable Model Based On Model 1.50CTE4MA3US13AC02.00 Special Model Special UNF Rod End Thread Repairable |
| dia. | 5/8" |
| function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Sleeve Nut Mounting (NFPA MX5) |
| Mounting Mode | Sleeve Nut Mounting (NFPA MX5) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Standard Logo | rohs.png |
| Stroke Length | 2" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
