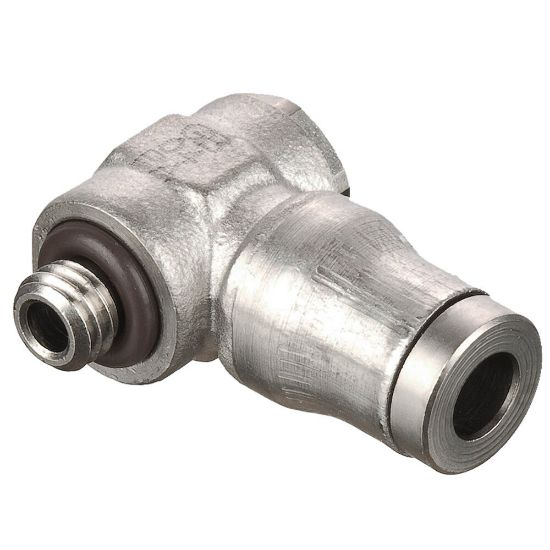

PARKER 169PLMBJ-6M-2G Push-To-Connect Fitting
Item: EA8PKG
Model: 169PLMBJ-6M-2G
In Stock
Get it by Friday, Apr 17
£27.85/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Product Datasheet | parker-164plm-10m.pdf |
|---|---|
| Angle | 90° |
| Application Type | Harsh Detergents Wash Down Hot, Cold Water Cleaning Steam Oils Welding Robots Medical Equipment |
| Connection Type | 6 mm Push To Connect Connection G1/8" Male Thread |
| Design | 14mm Ext. Hex17mm Backup Hexthreaded + Push-In (Push-To-Connect) Design#169PLMBJ Model |
| Equivalent To | 169PLMBJ6M2G |
| function | Pneumatic 90° L-Shaped Angled Single Banjo Connector Fitting |
| Main Function | Air Fitting |
| Material | Brass Body (Nickel-Plated)FKM Seal |
|---|---|
| Max. Operating Pressure | 290 psi |
| Media Temp. | -13°F to +302°F |
| no. of inlet | 1 |
| no. of outlet | 1 |
| Shape | L |
| Sub Range Name | Prestolok Series |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
| Country Of Origin | US |
|---|---|
| Weight | 1.125000 |
