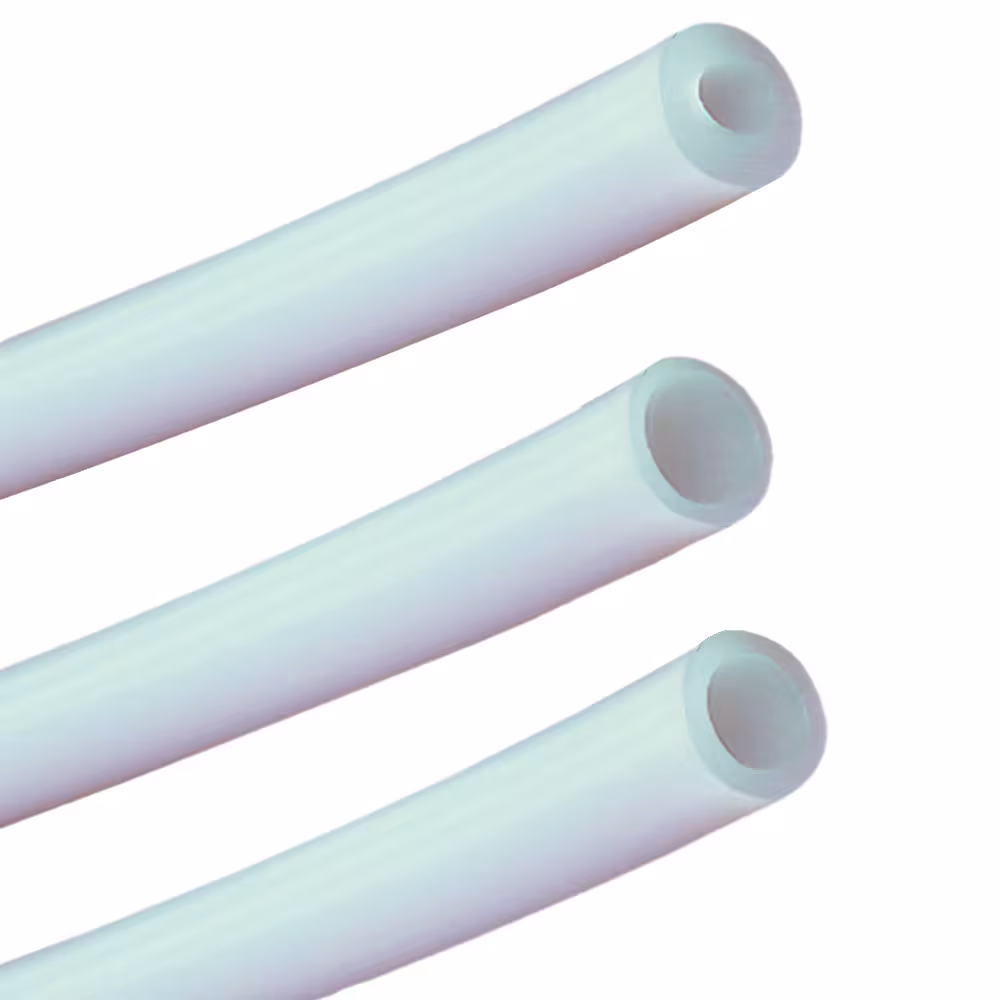

PARKER 104-0500062-NT-100 Tubing, Pfa, Clear, 3/8 Inch Id, 1/2 Inch OD, 100 Ft Length
Item: CT7KXW
Model: 104-0500062-NT-100
14 In Stock
Ships within 2 days via
5.00% off
£2452.19/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Air, Chemical, Fluid |
|---|---|
| Autoclavable | Yes |
| Bend Radius | 2 1/4" |
| Burst Pressure | 840 psi |
| Clarity | Semi Clear |
| Coil Weight | 7.9 lbs. |
| Color | Natural |
| Compatible Tube Wall Thickness | 0.062" |
| Elongation | 280% to 400% |
| End 1 Size | 1/2" |
| End 1 Type | NPT |
| End 2 Size | 1/2" |
| End 2 Type | NPT |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Low Coefficient Of Friction, Low Permeability, Self Extinguishing, Translucent |
| Fitting Compatibility | Compression |
| Flexibility | Flexible |
| Flow Application | Flow Monitoring, Fluid Transfer, Semiconductor, Steam Plant |
| For Environment | Chemical |
| For Fluid Type | Gas |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Hardness | Shore D 55 |
| Industry Application | Laboratory, Semiconductor, Steam Plant |
| Inside Dia. | 3/8" |
| Length | 100 ft. |
|---|---|
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Max. Operating Pressure | 210 psi |
| Max. Pressure Range | 230 psi |
| Maximum Operating Temperature | 500°F |
| Maximum Vacuum Pressure | 28 in. hg |
| Minimum Operating Temperature | -100°F |
| Outside Dia. | 1/2" |
| Outside Diameter Tolerance | -0.005" to +0.005" |
| Overall Length | 100 ft. |
| Peristaltic Pump Compatible | No |
| Resistance Properties | Crack Resistant, Heat Resistant |
| Series | PFA Series |
| Standard Logo | astm.png,cfr.png,ul.png,usp.png |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tensile Strength | 4500 psi |
| Tube Form | Coil |
| Vacuum Rated | Vacuum Rated |
| Vacuum Rating | Vacuum Rated |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.079 lbs.-ft. |
| standard | 21 CFR 177.1550, ASTM D3307, UL 94 V-0, USP CLASS VI COMPLIANT |
Product Details
Tubing
Shipping Information
| height | 2.54 |
|---|---|
| length | 1.27 |
| width | 1.27 |
| country of origin | US |
|---|---|
| weight | 3.600000 |
Related Products
| Style | Model | Application | Material | Max. Operating Pressure | Overall Length | Outside Dia. | Wall Thickness | Inside Dia. | Burst Pressure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 105-0500062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 210 psi | 50 ft. | 1/2" | 0.062" | 3/8" | 840 psi | 1,000.08 | |
| A | 105-0250047-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 340 psi | 50 ft. | 1/4" | 0.047" | 0.156" | 1360 psi | 406.33 | |
| A | 105-0750062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 130 psi | 50 ft. | 3/4" | 0.062" | 5/8" | 520 psi | 1,516.69 | |
| B | 105-1000062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 90 psi | 50 ft. | 1" | 0.062" | 7/8" | 360 psi | 2,200.56 | |
| C | 104-0188031-NT-50 | Air, Beverage, Chemical, Food | Teflon | 320 psi | 50 ft. | 0.188" | 0.031" | 1/8" | 1280 psi | 207.07 | |
| C | 104-0500062-NT-50 | Air, Beverage, Chemical, Food | Teflon | 210 psi | 50 ft. | 1/2" | 0.062" | 3/8" | 840 psi | 892.36 | |
| D | 104-0250047-NT-50 | Air, Beverage, Chemical, Food | Teflon | 340 psi | 50 ft. | 1/4" | 0.047" | 0.156" | 1360 psi | 362.81 |
