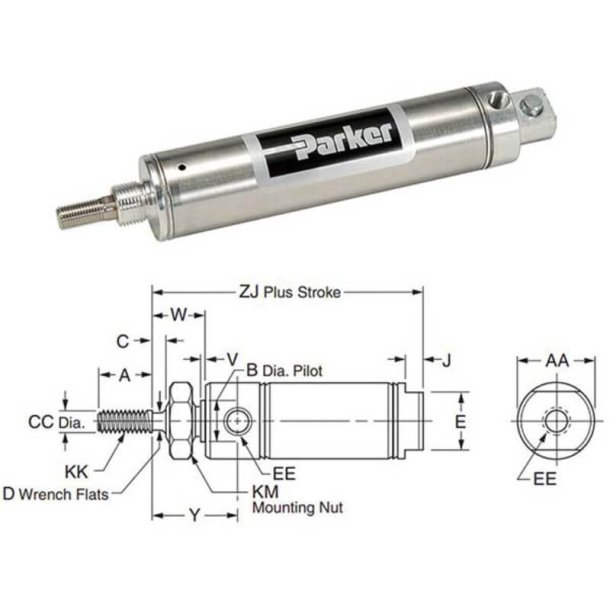

PARKER 1.50DSR15.25 Pneumatic Cylinder
Item: EB6RCM
Model: 1.50DSR15.25
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
15 1/4"
£177.33/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +165°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 1/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Threaded Rod-End |
| Design | "LipSeal" Piston Aluminium Head And Cap Non-Repairable |
| dia. | 7/16" |
| function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 15 1/4" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
Related Products
| Style | Model | Stroke | Mounting Type | Cylinder Type | Magnetic Piston | Single Acting/double Acting | Overall Length | Rod Thread Length | Spring Retraction Force | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1.50BFDSR01.00 | 1" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 6 11/25" | 1 1/4" | Not Applicable | 140.04 | |
| A | 1.50BFDSR02.00 | 2" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 7 11/25" | 1 1/4" | Not Applicable | 142.84 | |
| A | 1.50BFDSR03.00 | 3" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 8 11/25" | 1 1/4" | Not Applicable | 153.44 | |
| A | 1.50BFDSR04.00 | 4" | Front Block | - | No | Double Acting | 9 11/25" | 1 1/4" | Not Applicable | 151.30 | |
| A | 1.50BFDSR05.00 | 5" | Front Block | Round Body | Non-Magnetic Piston | Double Acting | 10 11/25" | 1 1/4" | Not Applicable | 166.81 | |
| A | 1.50BFDSR06.00 | 6" | Front Block | Round Body | - | Double Acting | 11 11/25" | 1 1/4" | Not Applicable | 173.59 | |
| B | 1.50BRDSR01.00 | 1" | Rear Block | Round Body | Non-Magnetic Piston | Double Acting | 6.63" | 1 1/4" | Not Applicable | 121.54 |
