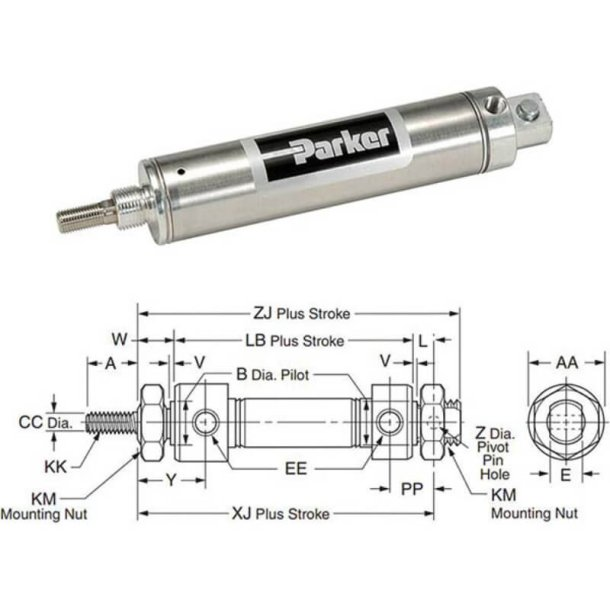

PARKER 0.75CDXPSRMC14.00 Pneumatic Cylinder
Item: EB4WME
Model: 0.75CDXPSRMC14.00
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
14"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | 14°F to 140°F |
|---|---|
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 1/8" NPT Threaded Pneumatic Ports 1/4"-28 UNF Male Threaded Rod-End |
| Design | Piston Magnet LipSeal Piston Aluminium Head, Cap Cushion At Both Ends Non Repairable |
| dia. | 1/4" |
| function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting (Without Pivot Pin) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 14" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
Related Products
| Style | Model | Magnetic Piston | Stroke | Mounting Type | Single Acting/double Acting | Rod Thread Length | Type | Spring Retraction Force | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.75BFDSRM01.00 | Magnetic Piston | 1" | Front Block | Double Acting | 3/4" | Round Body | Not Applicable | 4.97" | 95.57 | |
| A | 0.75BFDSRM02.00 | Magnetic Piston | 2" | Front Block | Double Acting | 3/4" | Round Body | Not Applicable | 5.97" | 100.51 | |
| A | 0.75BFDSRM03.00 | Magnetic Piston | 3" | Front Block | Double Acting | 3/4" | Round Body | Not Applicable | 6.97" | 98.77 | |
| A | 0.75BFDSRM04.00 | Magnetic Piston | 4" | Front Block | Double Acting | 3/4" | Round Body | Not Applicable | 7.97" | 110.21 | |
| A | 0.75BFDSRM05.00 | Magnetic Piston | 5" | Front Block | Double Acting | 3/4" | Round Body | Not Applicable | 8.97" | 115.11 | |
| A | 0.75BFDSRM06.00 | Magnetic Piston | 6" | Front Block | Double Acting | 3/4" | Round Body | Not Applicable | 9.97" | 119.99 | |
| B | 0.75BRDSRM01.00 | Magnetic Piston | 1" | Rear Block | Double Acting | 3/4" | Round Body | Not Applicable | 5.53" | 94.01 |
