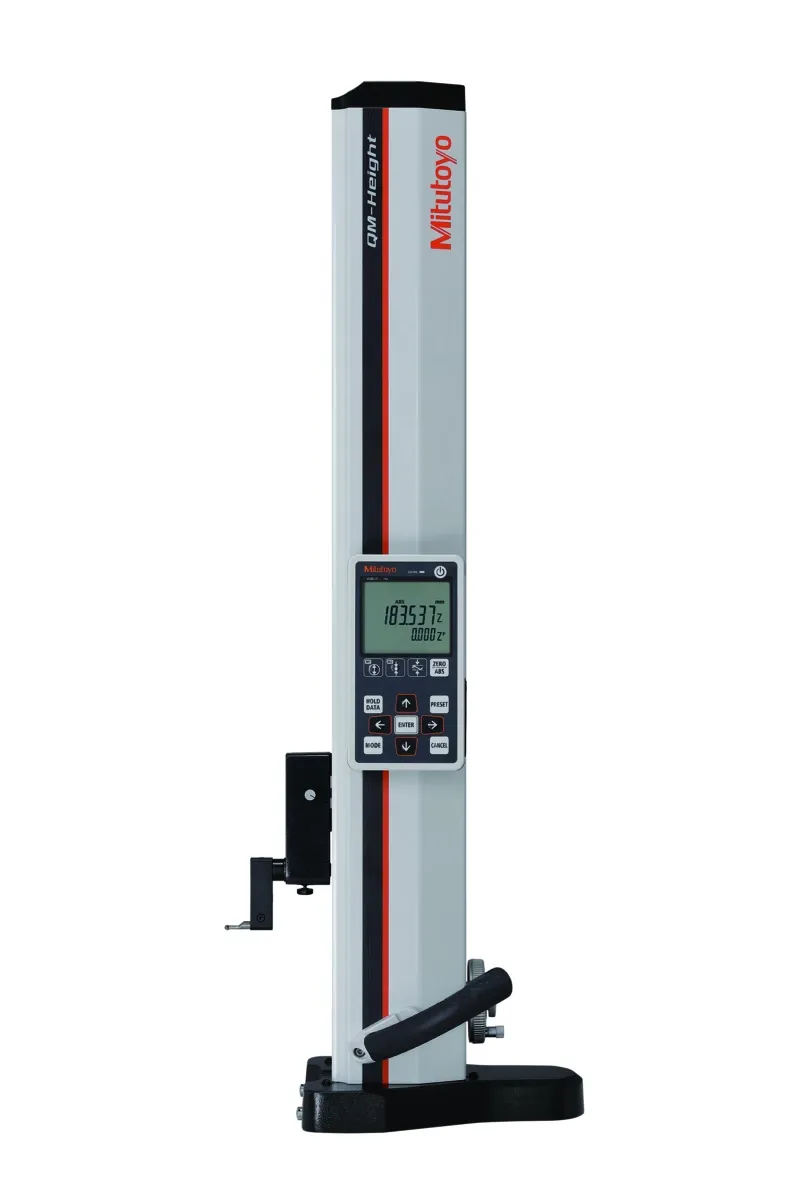

| Item | Height Gauge |
| Accuracy: | ±(2,4+2,1L/600) µm L = Measuring length (mm) |
| Air Floating: | no |
| Battery Life: | Approx. 1200 h(without air floating)Approx. 90 h (with air floating) |
| Digital Step: | 0,00005/0,0001/0,0002" or 0,001/0,005 mm |
| Digital/analog: | Digital |
| Display: | TN monochrome LCD |
| Drive Method: | Manual |
| Guiding Method: | Roller bearing |
| Inch-metric: | Inch/Metric |
| Measuring Function: | 1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory |
| Perpendicularity: | 12 µm |
| Power Supply: | Alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.),AC-Adapter (optional) |
| Range: | 0-24"/0-600 mm |
| Scale: | ABSOLUTE electromagnetic inductive |
| Ship weight (kg) | 25.79 |
