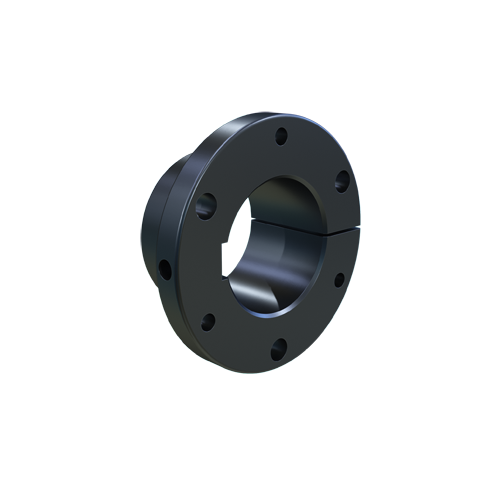

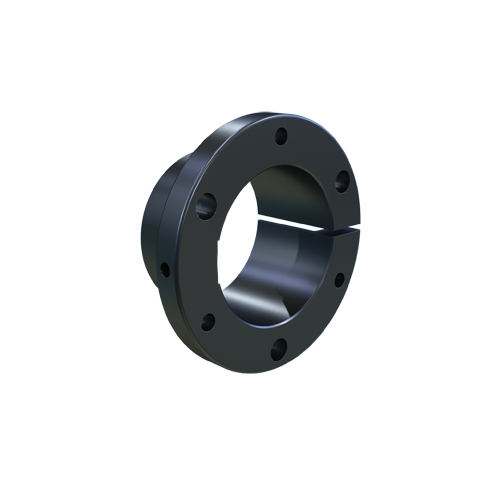

MARTIN SPROCKET SF-STL 2 5/8 Quick Detachable Bushing, 2.625 Inch Bore, 2.063 Inch Length, Steel
Item: BA3TRQ
Model: SF-STL 2 5/8
12 In Stock
Ships within 2 days via
£134.15/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Barrel Diameter | 3 1/8" |
|---|---|
| Bolt Circle Diameter | 3 7/8" |
| Bore Diameter | 2 5/8" |
| Bore Size | 2 5/8" |
| Bushing Size | SF-STL |
| Flange Diameter | 4 5/8" |
| Flange Thickness | 9/16" |
| Hub Diameter | 5 1/2" |
|---|---|
| Keyway Size | 5/8" x 1/16" |
| Length | 2 1/16" |
| Material | Steel |
| Number Of Bolt Holes | 3 |
| Screw Size | 3/8"-16 x 2" |
| Type | Standard |
Product Details
Quick Detachable Bushing
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 1.350000 |
Related Products
| Style | Model | Bore Size | Keyway Size | Flange Thickness | Type | Bushing Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | SF-STL 2 3/8 | 2 3/8" | 5/8" x 3/16" | 9/16" | Standard | SF-STL | 111.79 | |
| B | SF-STL 2 7/16 | 2 7/16" | 5/8" x 3/16" | 9/16" | Standard | SF-STL | 111.79 | |
| C | SF-STL 2 1/2 | 2 1/2" | 5/8" x 3/16" | 9/16" | Standard | SF-STL | 111.79 | |
| D | SF-STL 2 3/4 | 2 3/4" | 3/4" x 1/16" | 9/16" | Standard | SF-STL | 111.79 | |
| C | SF-STL 2 15/16 | 2 15/16" | 3/4" x 1/32" | 9/16" | Standard | SF-STL | 111.79 | |
| E | SF-STL 2 7/8 | 2 7/8" | 3/4" x 1/16" | 9/16" | Standard | SF-STL | 111.79 | |
| F | SF-STL 2 11/16 | 2 11/16" | 5/8" x 1/16" | 9/16" | Standard | SF-STL | 111.79 |
