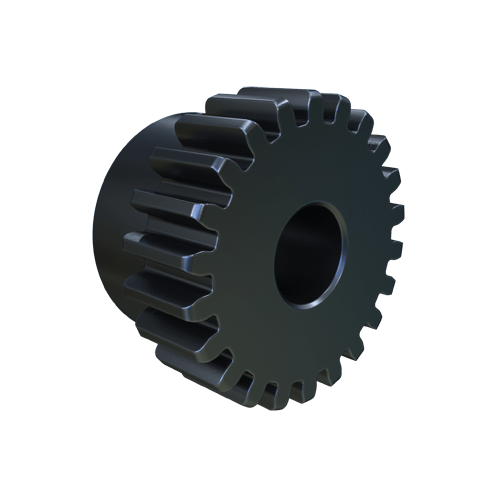

MARTIN SPROCKET S2022BS 3/8 Spur Gear, 20 Diametral Pitch, 1.1 Inch Pitch Dia., Bore To Size, Steel
Item: AL4MYL
Model: S2022BS 3/8
28 In Stock
Ships within 2 days via
1.1"
£119.5/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 3/8" |
|---|---|
| Diametral Pitch | 20 |
| Face Width | 3/8" |
| Hub Diameter | 0.9688" |
| Hub Projection | 3/8" |
| Hub Type | B |
| Length | 3/4" |
| Material | Steel |
| No. Of Teeth | 22 |
|---|---|
| Number Of Teeth | 22 |
| O.d. | 1 1/5" |
| Outside Dia. | 1 1/5" |
| Pitch Dia. | 1.1" |
| Pressure Angle | 14.5° |
| Type | Bored to Size |
Product Details
Spur Gear
Shipping Information
| height | 5.08 |
|---|---|
| length | 3.05 |
| width | 3.05 |
| country of origin | US |
|---|---|
| weight | 0.067500 |
Related Products
| Style | Model | Pressure Angle | Face Width | Outside Dia. | Hub Projection | Number Of Teeth | Pitch Dia. | Type | Diametral Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S2040BS 3/4 | 14.5° | 3/8" | 2.1" | 1/2" | - | - | Bored to Size | 20 | 128.33 | |
| B | TS2040BS 3/4 | 20° | 1/2" | 2.1" | 1/2" | - | - | Bored to Size External Tooth | 20 | 128.33 | |
| C | S2024BS 1/2 | 14.5° | 3/8" | 1.3" | 3/8" | 24 | 1 1/5" | Bored to Size | 20 | 94.80 | |
| D | S2011BS 5/16 | 14.5° | 3/8" | 0.7" | 3/8" | - | 3/5" | Bored to Size | 20 | 68.07 | |
| E | S2012BS 5/16 | 14.5° | 3/8" | 0.7" | 3/8" | 12 | 3/5" | Bored to Size | 20 | 68.07 | |
| F | S2013BS 5/16 | 14.5° | 3/8" | 3/4" | 3/8" | 13 | 0.65" | Bored to Size | 20 | 75.47 | |
| C | S2015BS 3/8 | 14.5° | 3/8" | 0.85" | 3/8" | 15 | - | Bored to Size | 20 | 77.33 |
