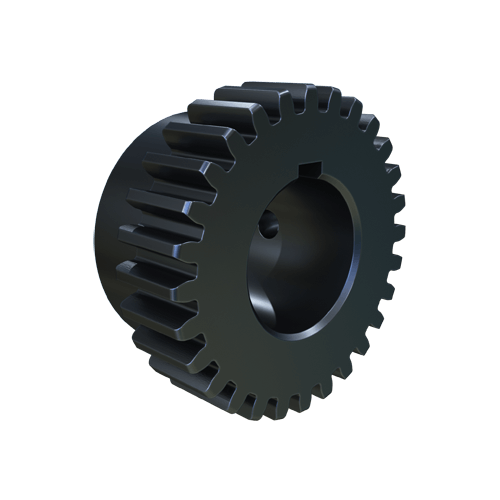

MARTIN SPROCKET S1628BS 7/8 Spur Gear, 16 DP, 14.5 Deg., 28 Teeth, 1.750 Inch Pitch Dia., Bore To Size, Steel
Item: AL4MXQ
Model: S1628BS 7/8
12 In Stock
Ships within 2 days via
£123.94/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 7/8" |
|---|---|
| Diametral Pitch | 16 |
| Face Width | 1/2" |
| Hub Diameter | 1 1/2" |
| Hub Projection | 1/2" |
| Hub Type | B |
| Keyway Size | 0.1875" x 0.0938" |
| Length | 1" |
| Material | Steel |
|---|---|
| No. Of Teeth | 28 |
| Number Of Teeth | 28 |
| Outside Dia. | 1 7/8" |
| Outside Diameter | 1 7/8" |
| Pitch Dia. | 1 3/4" |
| Pressure Angle | 14.5° |
| Type | Bored to Size |
Product Details
Spur Gear
Shipping Information
| height | 5.08 |
|---|---|
| length | 4.78 |
| width | 4.78 |
| country of origin | US |
|---|---|
| weight | 0.184500 |
Related Products
| Style | Model | Pressure Angle | Face Width | Outside Dia. | Hub Projection | Number Of Teeth | Pitch Dia. | Type | Diametral Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S1620BS 1/2 | 14.5° | 1/2" | 1 3/8" | 0.438" | - | - | Bored to Size | 16 | 82.07 | |
| B | S1624BS 3/4 | 14.5° | 1/2" | 1 5/8" | 0.438" | 24 | - | Bored to Size | 16 | 91.12 | |
| C | S1611BS 3/8 | 14.5° | 1/2" | 7/8" | 0.438" | - | - | Bored to Size | 16 | 70.49 | |
| D | S1612BS 3/8 | 14.5° | 1/2" | 7/8" | 0.438" | 12 | - | Bored to Size | 16 | 70.49 | |
| E | S1614BS 3/8 | 14.5° | 1/2" | 1" | 0.438" | 14 | 7/8" | Bored to Size External Tooth | 16 | 71.47 | |
| F | S1615BS 1/2 | 14.5° | 1/2" | 1.062" | 0.438" | 15 | 0.937" | Bored to Size External Tooth | 16 | 74.77 | |
| G | S1616BS 1/2 | 14.5° | 1/2" | 1 1/8" | 0.438" | 16 | - | Bored to Size External Tooth | 16 | 80.52 |
