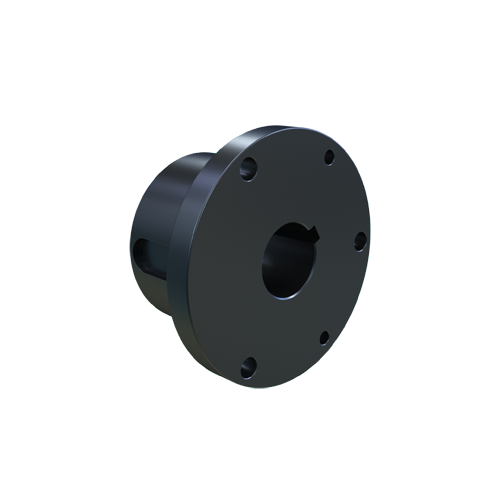

MARTIN SPROCKET R1 1 9/16 Bushing, 2.875 Inch Length Through Bore, 1.563 Inch Bore, Ductile Iron
Item: BA2YEN
Model: R1 1 9/16
18 In Stock
Ships within 2 days via
1 9/16"
£193.52/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bolt Circle Diameter | 4 5/8" |
|---|---|
| Bore Diameter | 1 9/16" |
| Cap Screw Size | 3/8"-16 x 1 3/4" |
| Flange Dia. | 5 3/8" |
| Flange Thickness | 5/8" |
| Hub Diameter | 5 3/4" |
| Keyway Size | 3/8" x 3/16" |
| Large End Barrel Dia. | 4" |
| Length | 2 22/25" |
|---|---|
| Material | Ductile Iron |
| Number Of Bolt Holes | 3 |
| Set Screw Size | 5/16"-18 x 5/16" |
| Small End Barrel Diameter | 3 7/8" |
| Suitable For Use With | MST Sprockets, HR1 Weld On Hub |
| Type | Standard |
Product Details
Bushing
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 4.005000 |
