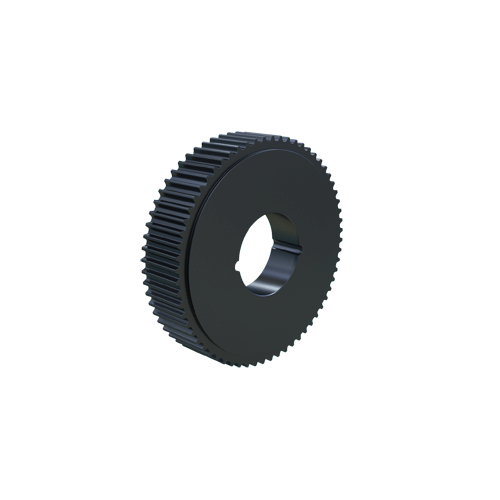

MARTIN SPROCKET P6414M55-3020 Sprocket, 3020 Bushing, 3 Inch Max Bore, 64 Teeth, 11.229 Inch Pitch Dia., Cast Iron
Item: AL4ZME
Model: P6414M55-3020
In Stock
Get it by Wednesday, Apr 15
11.229"
£918.06/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 0.938" to 3" |
|---|---|
| Bore Type | Taper Bushed |
| Bushing Type | 3020 |
| Face Width | 2 3/4" |
| Flange Dia. | 11 3/4" |
| Length | 2 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 64 |
|---|---|
| No. Of Teeth | 64 |
| O.d. | 11.122" |
| Pitch | 0.55118" |
| Pitch Dia. | 11.229" |
| Suitable For Use With | RPP, RPP Plus, Hawk Pd, HTD belts |
| Type | Web Type WF-2 |
Product Details
Sprocket
Shipping Information
| country of origin | US |
|---|
| weight | 19.291500 |
|---|
Related Products
| Style | Model | Pitch Dia. | Bore Type | Face Width | Type | Pitch | Bushing Type | Flange Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | P2814M40-2012 | 4.912" | Taper Bushed | 2 1/8" | Solid Type KF-1 | 0.55118" | 2012 | 5.56" | 275.88 | |
| B | P2914M40-2012 | 5.088" | Taper Bushed | 2 1/8" | Solid Type KF-1 | 0.55118" | 2012 | 5.56" | 292.12 | |
| A | P3014M40-2012 | - | Taper Bushed | 2 1/8" | Solid Type KF-1 | 0.55118" | 2012 | 6.13" | 301.85 | |
| C | P3214M40-2012 | - | TB Bushed | 2 1/8" | Solid Type KF-1 | 14 mm | 2012 | 6 1/8" | 331.06 | |
| D | P3414M40-2012 | 5.965" | TB Bushed | 2 1/8" | Solid Type KF-1 | 14 mm | 2012 | - | 340.79 | |
| E | P3614M40-2517 | 6.316" | Taper Bushed | 2 1/8" | Solid Type KF-1 | 0.55118" | 2517 | 6.81" | 373.24 | |
| F | P3814M40-2517 | 6.667" | Taper Bushed | 2 1/8" | Solid Type KF-1 | 0.55118" | 2517 | 7.16" | 421.94 |
