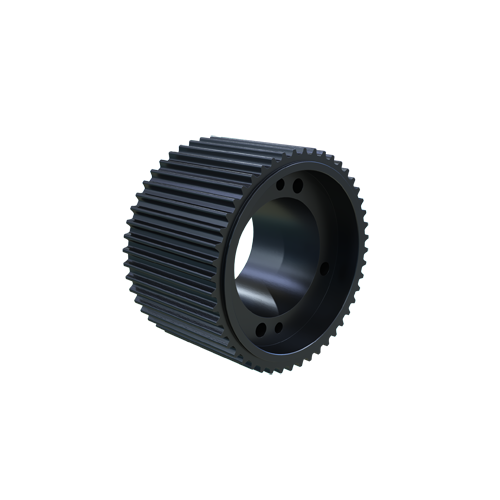

MARTIN SPROCKET P4820M170-M Sprocket, 48 Teeth, 12.031 Inch Pitch Dia., Steel
Item: AK6RUL
Model: P4820M170-M
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
12.031"
£3349.91/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 2" to 5 1/2" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | M |
| Face Width | 7 1/2" |
| Flange Dia. | 12.795" |
| Length | 5.188" |
| Material | Steel |
| No. Of Grooves | 48 |
|---|---|
| No. Of Teeth | 48 |
| O.d. | 11.861" |
| Pitch | 20 mm |
| Pitch Dia. | 12.031" |
| Type | Solid Type AF-1 |
Product Details
Sprocket
Shipping Information
| country of origin | US |
|---|
| weight | 62.271000 |
|---|
Related Products
| Style | Model | Pitch Dia. | Bore Type | Face Width | Type | Pitch | Bushing Type | Flange Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | P3420M115-F | 8.522" | QD Bushed | 5.38" | Solid Type AF-1 | 0.7874" | F | 9.449" | 1,495.80 | |
| B | P3620M115-F | - | QD Bushed | 5.38" | Solid Type AF-1 | 0.7874" | F | 9.843" | 1,594.37 | |
| C | P3820M115-F | - | QD Bushed | 5.38" | Solid Type AF-1 | 0.7874" | F | 10.433" | 1,692.93 | |
| B | P4020M115-F | 10.026" | QD Bushed | 5.38" | Solid Type AF-1 | 0.7874" | F | 10.827" | 1,794.40 | |
| A | P4420M115-F | - | - | - | - | - | - | - | 1,994.41 | |
| A | P4820M115-J | 12.031" | QD Bushed | 5.38" | Solid Type AF-1 | 0.7874" | J | 12.795" | 2,191.53 | |
| A | P5220M115-J | 13.033" | QD Bushed | 5.38" | Web Type AF-2 | 0.7874" | JA | 13.764" | 2,423.44 |
