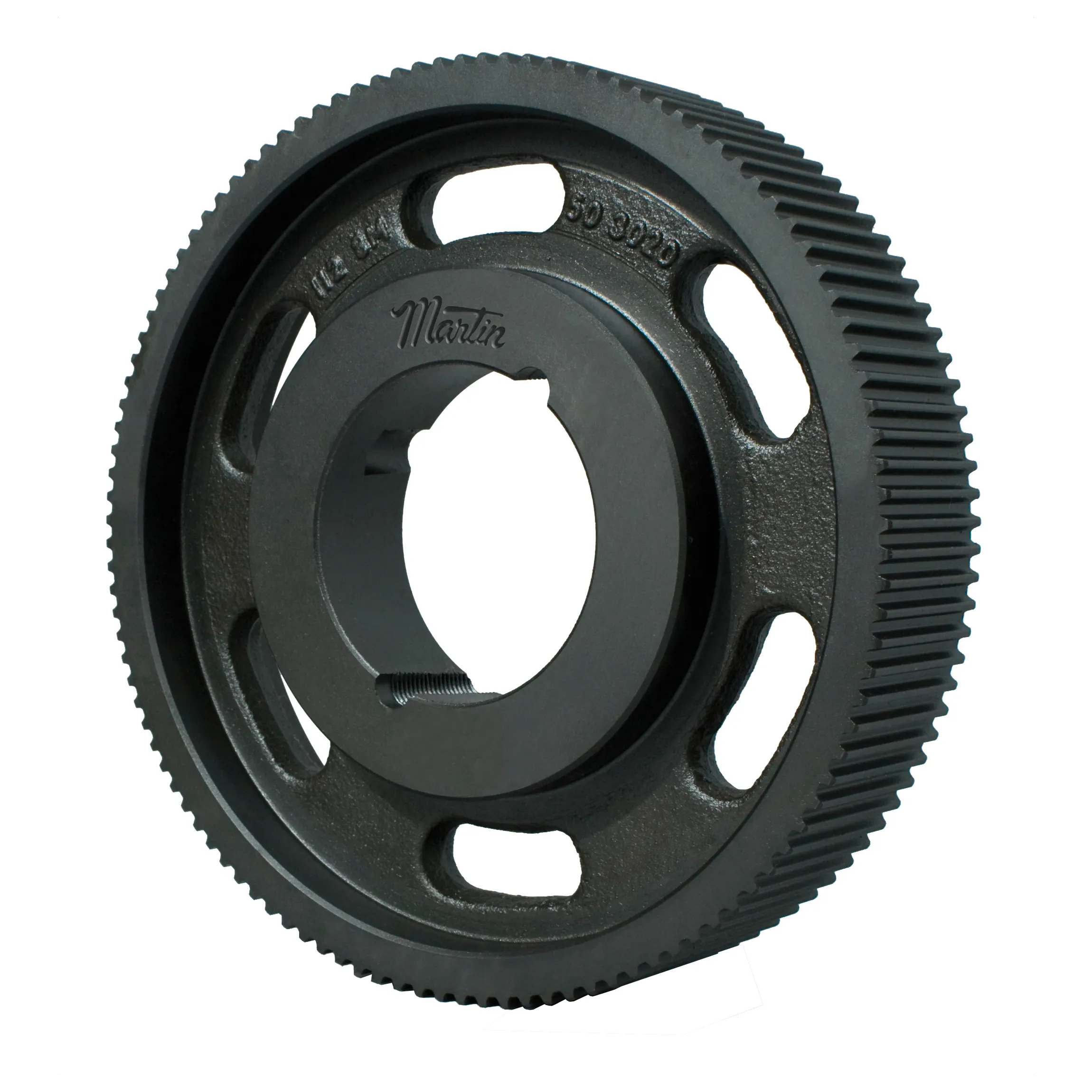

MARTIN SPROCKET P1128M50-3020 Sprocket, 3020 Bushing, 3 Inch Max Bore, 112 Teeth, 11.229 Inch Pitch Dia., Cast Iron
Item: AL4ZKH
Model: P1128M50-3020
In Stock
Get it by Thursday, Apr 16
11.229"
£781.18/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 0.938" to 3" |
|---|---|
| Bore Type | Taper Bushed |
| Bushing Type | 3020 |
| Face Width | 2 3/8" |
| Length | 2 3/8" |
| Material | Cast Iron |
| No. Of Grooves | 112 |
| No. Of Teeth | 112 |
|---|---|
| O.d. | 11.178" |
| Pitch | 0.31496" |
| Pitch Dia. | 11.229" |
| Product Datasheet | martin-sprocket-10xl037.pdf |
| Suitable For Use With | RPP, RPP Plus, Hawk Pd, HTD belts |
| Type | Arms Type W-3 |
Product Details
Shipping Information
| Height | 6.05 |
|---|---|
| Length | 28.4 |
| Width | 28.4 |
| Country Of Origin | US |
|---|---|
| Weight | 15.615000 |
