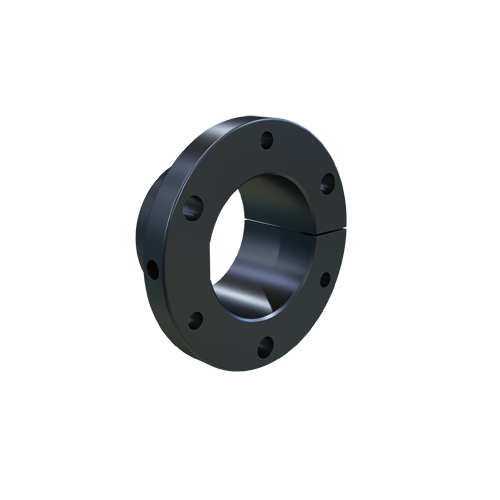

MARTIN SPROCKET E-STL 3 7/16 Quick Detachable Bushing, 3.438 Inch Bore, 2.625 Inch Length, Steel
Item: AJ9ZZQ
Model: E-STL 3 7/16
20 In Stock
Ships within 2 days via
3 7/16"
£283.81/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Barrel Diameter | 3.834" |
|---|---|
| Bolt Circle Diameter | 5" |
| Bore Diameter | 3 7/16" |
| Bore Size | 3 7/16" |
| Bushing Size | E-STL |
| Flange Diameter | 6" |
| Flange Thickness | 3/4" |
| Hub Diameter | 6 1/2" |
|---|---|
| Keyway Size | 7/8" x 1/16" |
| Length | 2 5/8" |
| Material | Steel |
| Number Of Bolt Holes | 3 |
| Screw Size | 1/2"-13 x 2 3/4" |
| Type | Standard |
Product Details
Quick Detachable Bushing
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 2.583000 |
Related Products
| Style | Model | Bore Size | Keyway Size | Flange Thickness | Type | Bushing Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | E-STL 1 1/4 | 1 1/4" | 1/4" x 1/8" | 3/4" | Standard | E-STL | 202.73 | |
| B | E-STL 1 7/16 | 1 7/16" | 3/8" x 3/16" | 3/4" | Standard | E-STL | 236.51 | |
| C | E-STL 1 1/2 | 1 1/2" | 3/8" x 3/16" | 3/4" | Standard | E-STL | 236.51 | |
| D | E-STL 1 5/8 | 1 5/8" | 3/8" x 3/16" | 3/4" | Standard | E-STL | 236.51 | |
| E | E-STL 1 11/16 | 1 11/16" | 3/8" x 3/16" | 3/4" | Standard | E-STL | 236.51 | |
| F | E-STL 1 3/4 | 1 3/4" | 3/8" x 3/16" | 3/4" | Standard | E-STL | 236.51 | |
| G | E-STL 1 7/8 | 1 7/8" | 1/2" x 1/4" | 3/4" | Standard | E-STL | 236.51 |
