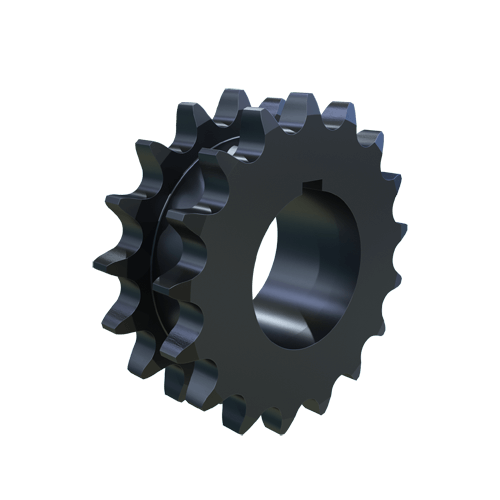

MARTIN SPROCKET DS80Q17H Sprocket, MST, 80 Chain, 17 Teeth, 5.442 Inch Pitch Dia., 5.950 Inch O.D., Steel
Item: AL7DHG
Model: DS80Q17H
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 0.75" to 2.688" |
|---|---|
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Individually Packaged | Yes |
| Length Through Bore | 2 3/16" |
| Length Thru Bore | 2.188" |
|---|---|
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Teeth | 17 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 17 |
| Outside Dia. | 5.95" |
| Pitch | 1" |
| Pitch Dia. | 5.442" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2 1/16" |
| Storage Dimension Length | 5 1/2" |
| Storage Dimension Width | 5 1/2" |
| Type | Double Single MST Q1 Bushed Solid Type B |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 5.56 |
|---|---|
| length | 15.11 |
| width | 15.11 |
| country of origin | US |
|---|---|
| weight | 3.285000 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

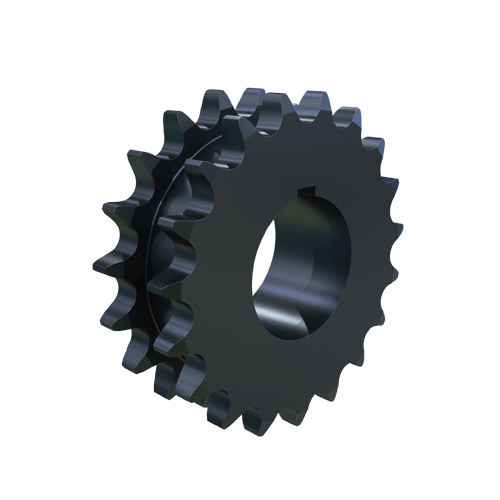

| A | DS80Q19H | 19 | 6.076" | 6.59" | 2.188" | Type Q1 Split Taper | 80 | 1" | Bushed | 690.67 | |

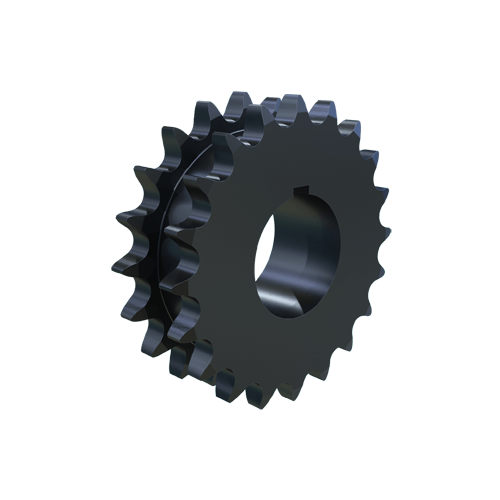

| B | DS80Q20H | 20 | 6.392" | 6.91" | 2 3/16" | Type Q1 Split Taper | 80 | 1" | Bushed | 619.83 | |

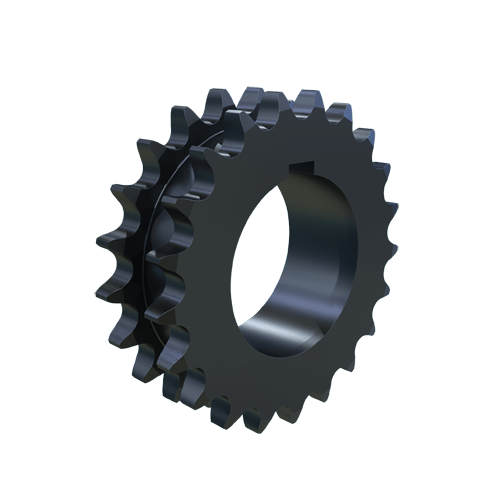

| C | DS80R21H | 21 | 6.71" | 7.24" | 2 3/16" | Type R1 Split Taper | 80 | 1" | Bushed | 608.73 | |
| D | DS80R23H | 23 | 7.344" | 7.88" | 2.188" | Type R1 Split Taper | 80 | 1" | Bushed | 542.90 |
