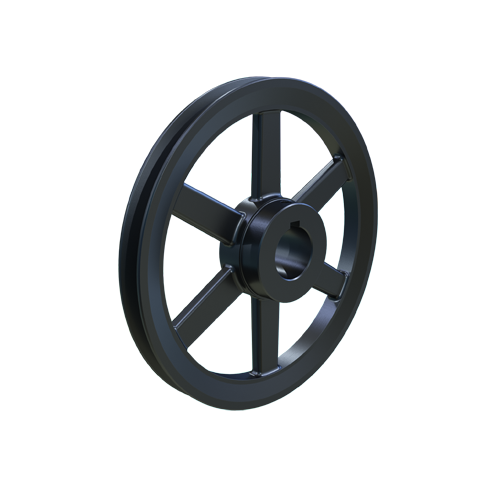

MARTIN SPROCKET BK95 1 7/16 Sheave, 1.438 Inch Bore, 0.875 Inch Face Width, 9.250 Inch Outside Dia., Cast Iron
Item: AM3LKA
Model: BK95 1 7/16
In Stock
Get it by Thursday, Apr 16
9.250"
1.438"
£115.3/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 4la Or A Belt Pitch Dia. | 8 1/2" |
|---|---|
| 5l Or B Belt Pitch Dia. | 8.9" |
| Bore Diameter | 1.438" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 7/8" |
| Hub Diameter | 2 3/4" |
| Hub Projection | 21/32" |
| Length | 1 17/32" |
| Material | Cast Iron |
|---|---|
| Number Of Grooves | 1 |
| Outside Dia. | 9 1/4" |
| Outside Diameter | 9 1/4" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Series | BK Series |
| Suitable For Use With | A, 4L, B, 5L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Product Details
Shipping Information
| height | 3.89 |
|---|---|
| length | 23.5 |
| width | 23.5 |
| country of origin | US |
|---|---|
| weight | 2.565000 |
Related Products
| Style | Model | Outside Dia. | Face Width | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | BK45 3/4 | 4 1/4" | 7/8" | Cast Iron | 43.04 | |
| B | BK55 3/4 | 5 1/4" | 7/8" | Cast Iron | 49.98 | |
| C | BK100 1 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| D | BK100 1 1/4 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| E | BK100 1 1/8 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| F | BK100 1 3/16 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| G | BK25 3/4 | 2 1/2" | 0.813" | Steel | 24.48 |
